Cover Replacement

NOTE:

When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Remove the crash pad side cover (A), crash pad center under cover (B), under cover (C).
1. Crash pad side cover.

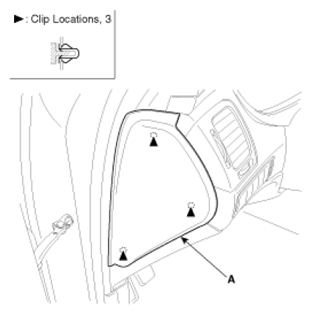

  Fig 1: Identifying Crash Pad Side Cover (RH)
  Courtesy of HYUNDAI MOTOR CO.

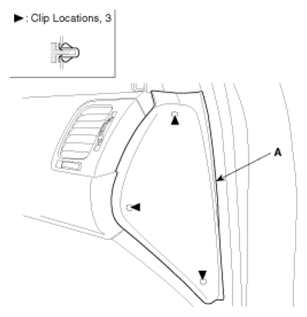

  Fig 2: Identifying Crash Pad Side Cover (LH)
  Courtesy of HYUNDAI MOTOR CO.
2. Front crash pad center under cover, LH
  - Remove the console assembly.

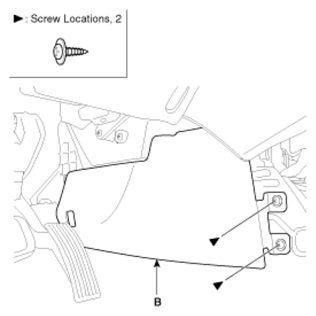

    Fig 3: Identifying Front Crash Pad Center Under Cover (LH)
    Courtesy of HYUNDAI MOTOR CO.
3. Front crash pad center under cover, RH
  - Remove the console assembly.

    Fig 4: Identifying Front Crash Pad Center Under Cover (RH)
    Courtesy of HYUNDAI MOTOR CO.
4. Under cover

  Fig 5: Identifying Under Cover
  Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
