Cluster Replacement

  1. Remove the cluster fascia panel.
  2. Loosen the screws.
  3. Disconnect the cluster connector, then remove the cluster (A).

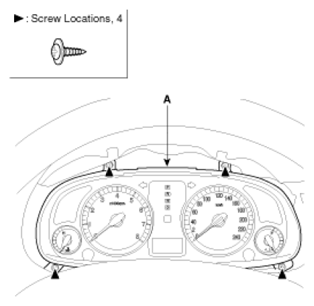

    Fig 1: Identifying Cluster
    G07249920Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
    NOTE:
    • Make sure the connector is plugged in properly.

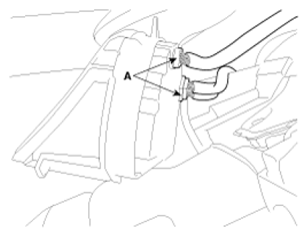

      Fig 2: Identifying Connector
      G07249921Courtesy of HYUNDAI MOTOR CO.
