Center Fascia Panel Replacement

NOTE:
  • When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Put on gloves to protect your hands.
  1. Remove the crash pad side cover.
  2. Remove the lower crash pad panel.
  3. Remove the center garnish (A).

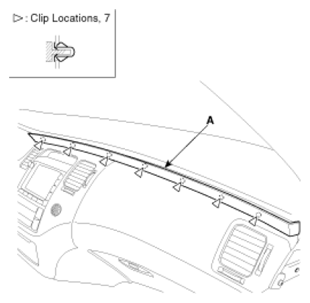

    Fig 1: Identifying Center Garnish
    G07249917Courtesy of HYUNDAI MOTOR CO.
  4. Loosening the crash pad center fascia panel mounting screws.
  5. After disconnecting the connector, remove center fascia panel (A).

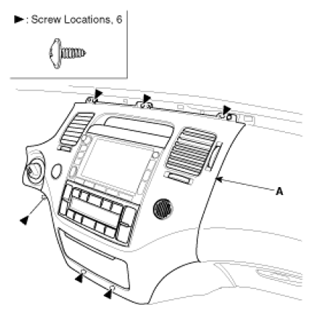

    Fig 2: Identifying Center Fascia Panel
    G07249918Courtesy of HYUNDAI MOTOR CO.
  6. Installation is the reverse of removal.
    NOTE:
    • Make sure the connector is plugged in properly.
