Armrest Replacement

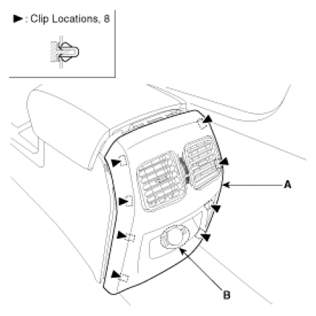

  1. After remove the rear console cover (A), disconnect the connector (B).
    Fig 1: Identifying Rear Console Cover And Connector
    G07249912Courtesy of HYUNDAI MOTOR CO.
  2. After loosening the armrest mounting nuts, remove the armrest (A).
    Fig 2: Identifying Armrest And Mounting Nuts
    G07249913Courtesy of HYUNDAI MOTOR CO.
  3. Installation is the reverse of removal.
