Component and components Component Location: Components

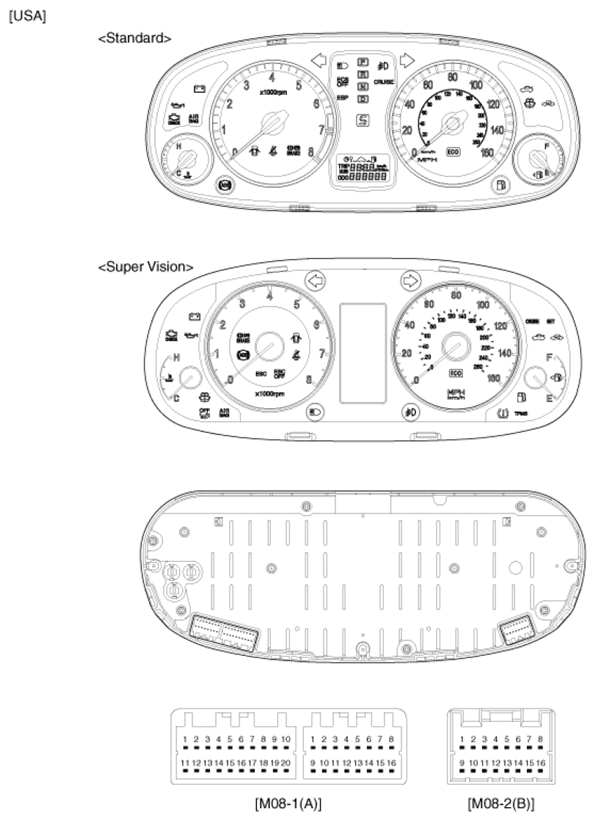

Fig 1: Identifying Instrument Cluster (USA)
G07250207Courtesy of HYUNDAI MOTOR CO.

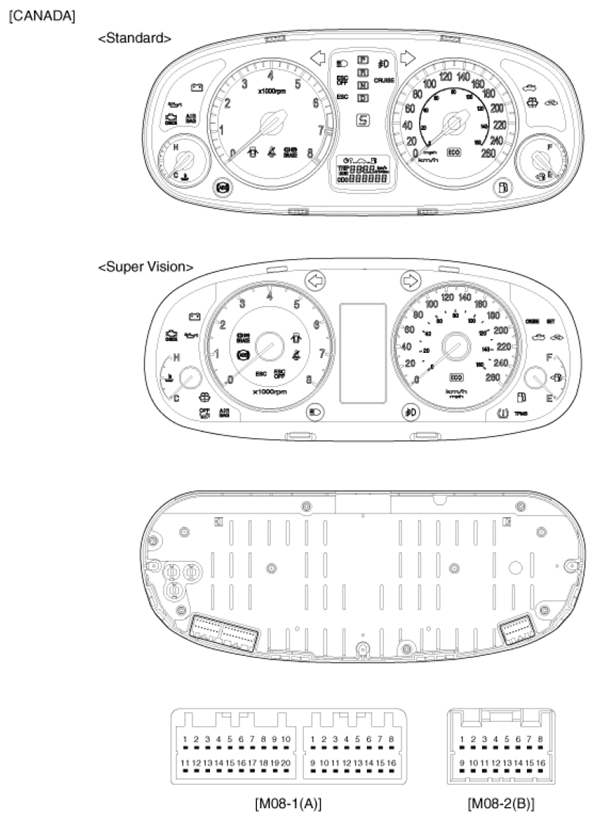

Fig 2: Identifying Instrument Cluster (CANADA)
G07250208Courtesy of HYUNDAI MOTOR CO.
