Accent GL
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Indicators And Gauges
>>
Instrument Cluster
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

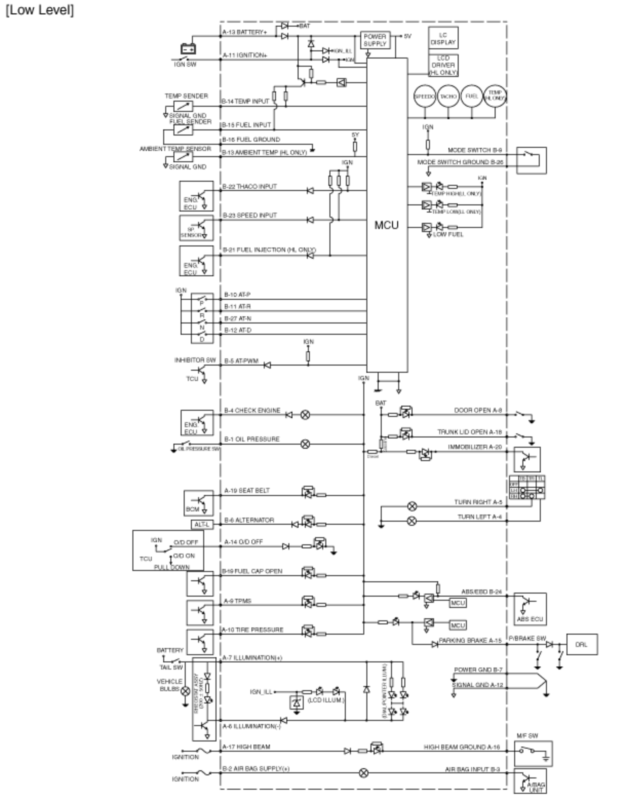

Fig 1: Instrument Cluster Circuit Diagram (Low Level)
Courtesy of HYUNDAI MOTOR CO.

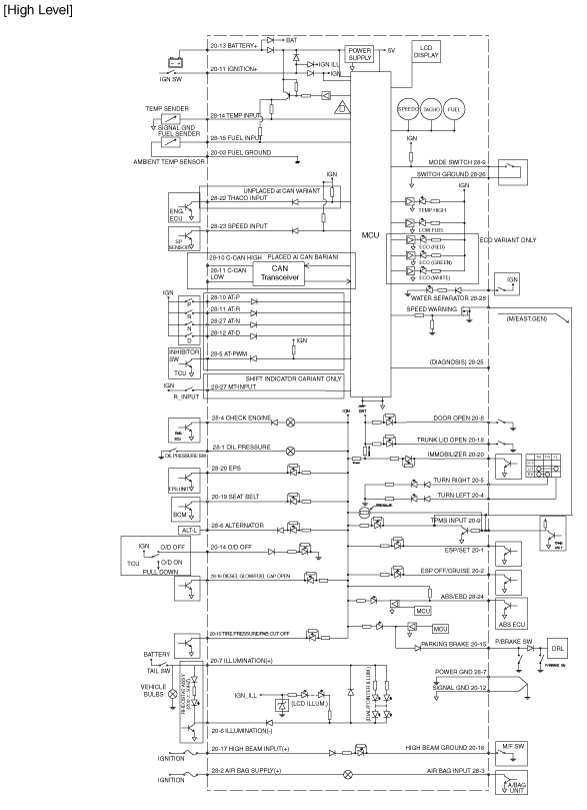

Fig 2: Instrument Cluster Circuit Diagram (High Level)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
