Trip Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the trip switch (A) from the cluster facia panel (B).
    Fig 1: Identifying Seat Belt Switch Connector Terminals
    G06882599Courtesy of HYUNDAI MOTOR CO.
  3. Check for continuity between the terminals in each switch position according to the table.

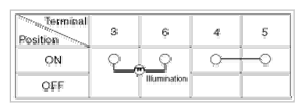

    Fig 2: Seat Belt Switch Continuity Chart
    G06882600Courtesy of HYUNDAI MOTOR CO.
