Repair procedures: Replacement: Removal

NOTE:
  • Put on gloves to protect your hands.
  • Use seat covers to avoid damaging any surfaces.
  1. Remove the following items.
    1. Front pillar trim, both sides.
    2. Windshield wiper arms and cowl cover

    (See WINDSHIELD WIPER/WASHER ).

  2. Remove the windshield glass side molding.
    Fig 1: Identifying Front Pillar Trim
    G06802198Courtesy of HYUNDAI MOTOR CO.
  3. Cut out the sealant using the sealant cutting tool (A) (09861-31100).

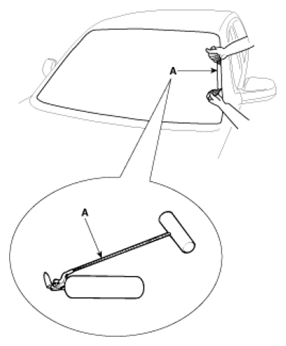

    Fig 2: Cutting Sealant Using Sealant Cutting Tool (09861-31100)
    G06802199Courtesy of HYUNDAI MOTOR CO.
  4. Remove the windshield (A) carefully using the glass holder (B) (09861-31100).
Fig 3: Removing Windshield Using Glass Holder (09861-31100)
G06802200Courtesy of HYUNDAI MOTOR CO.
