Package Tray Trim Replacement

NOTE:

Put on gloves to protect your hands.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
Take care not to bend or scratch the trim and panels.

Remove the following items.
1. Rear seat assembly.
2. Rear seat belt lower anchor.

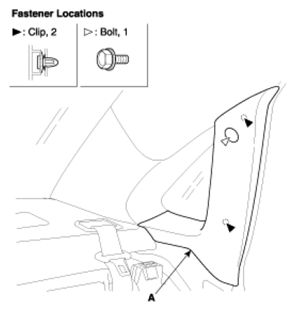

Remove the rear pillar lower trim (A)

Fig 1: Identifying Rear Pillar Lower Trim With Fasteners
Courtesy of HYUNDAI MOTOR CO.
Remove rear pillar upper trim (B).

Fig 2: Identifying Rear Pillar Upper Trim With Fasteners
Courtesy of HYUNDAI MOTOR CO.
Loosening the package tray trim mounting screws.
Remove the package tray trim (A).

Fig 3: Identifying Package Tray Trim With Fasteners
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Replace any damage clips.
