Rear Pillar Trim Replacement

NOTE:

Put on gloves to protect your hands.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
Take care not to bend or scratch the trim and panels.

Remove the rear pillar lower trim (A)

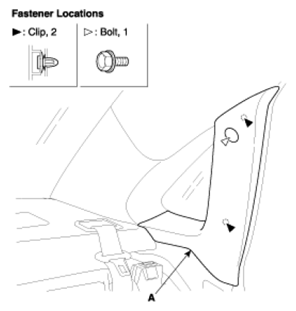

Fig 1: Identifying Rear Pillar Lower Trim With Fasteners
Courtesy of HYUNDAI MOTOR CO.
Remove the rear pillar upper trim (B).

Fig 2: Identifying Rear Pillar Upper Trim With Clips
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.

NOTE:

Replace any damage clips.
