Lower Panel Replacement

  1. Remove the crash pad side cover.
  2. After loosening the crash pad lower panel mounting screw, then remove the lower panel (B).
  3. Disconnecting the connector (A).

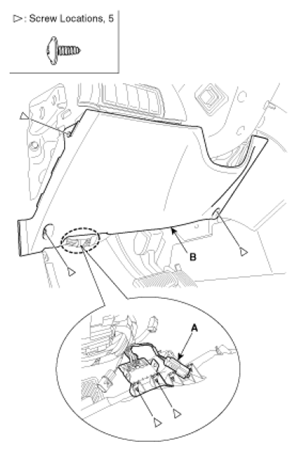

    Fig 1: Identifying Lower Panel And Connector With Mounting Screws
    G06802158Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
