Transaxle Gear Oil Level Replacement

Replacement
1. With the vehicle parked on a level surface, remove the drain plug.

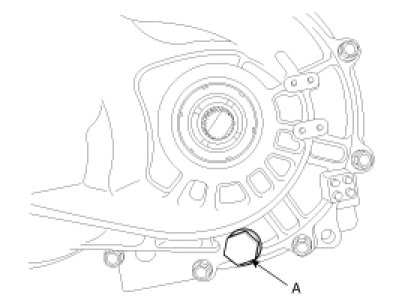

2. Drain the transaxle oil after loosening the drain plug(A).




3. Install the drain plug with new washer.

Tightening torque :
60-80 Nm (6.0-8.0 kgf.m, 43.4-57.8 lb-ft)


4. Add new oil through the filler plug hole and, fill it just below the plug opening.

Standard oil SAE 75W/85, API GL-4
Oil capacity: 2.0 liter (2.1 US qt, 1.76 lmp qt)
