Seals and Gaskets: Service and Repair

Drive Shaft Oil Seal

Replacement
1. Disconnect the drive shaft from the transaxle.

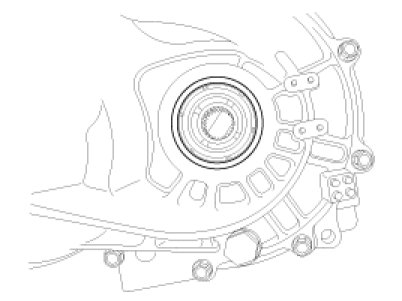

2. Using a flat-tip screwdriver, remove the oil seal.

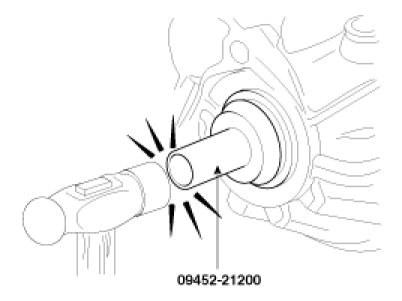

3. Using the special tool(09452-21200), tap the drive shaft oil seal into the transaxle.
