Disassembly





Disassembly

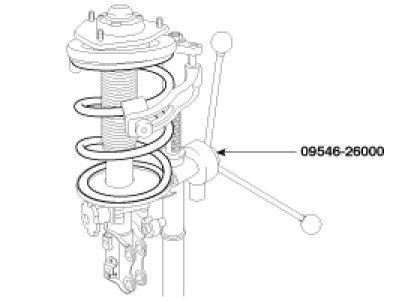

1. Compress the coil spring with a SST (09546-26000). Do not compress the spring more than necessary.
2. Loosen the self-locking nut.
