Traction Control Switch: Testing and Inspection

Inspection

1. Disconnect the negative (-) battery terminal.

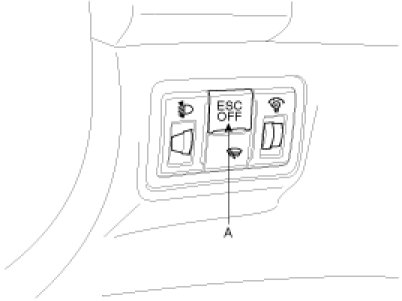

2. Remove the lower side crash pad switch assembly (A) by using the trim remover tool.

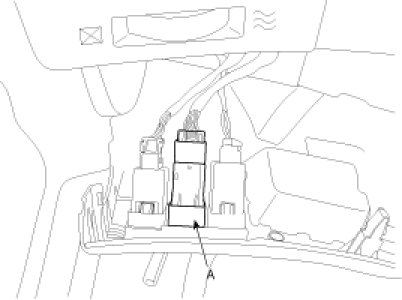

3. Disconnect the "ESC OFF" switch connector (A).




4. Check the continuity between the switch terminals as the ESC OFF switch is engaged.
