Seat Belt Buckle: Service and Repair

Front Seat Belt Buckle Replacement
1. Remove the front seat assembly.
2. Remove the wire harness of buckle from seat.

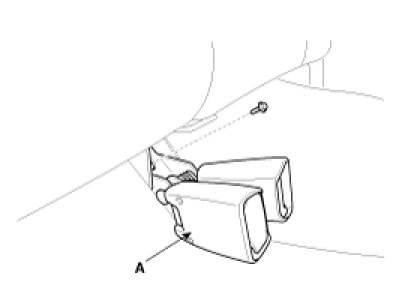

3. Remove the seat belt buckle (A).
* Bolt, 4.0 - 5.5 kgf.m (39.2 - 53.9 N.m, 28.9 - 39.8 lbf.ft)




4. Installation is the reverse of removal.

Rear Seat Belt Buckle Replacement
1. Remove the rear seat cushion

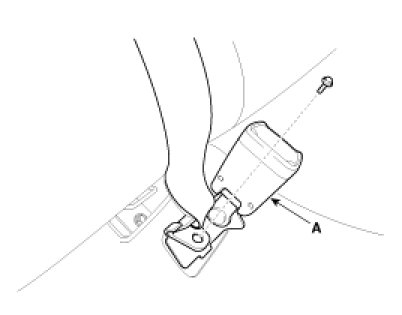

2. Remove the seat belt buckle (A).
* Bolt, 4.0 - 5.5 kgf.m (39.2 - 53.9 N.m, 28.9 - 39.8 lbf.ft)








3. Installation is the reverse of removal.
