Wiper Relay: Testing and Inspection

Inspection

1. Washer interlocking must conform to the mode shown in figure.
This function shall be operated preferentially if wiper is operating.

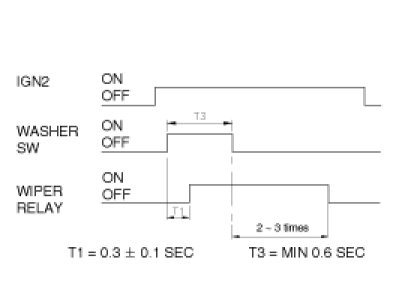

[Washer SW input more than 0.6 sec.]

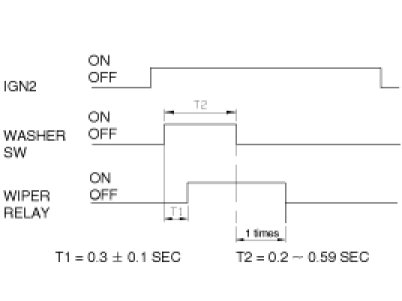

[Washer SW input less than 0.6 sec.]




2. Wiper operation must conform to the mode shown in figure.

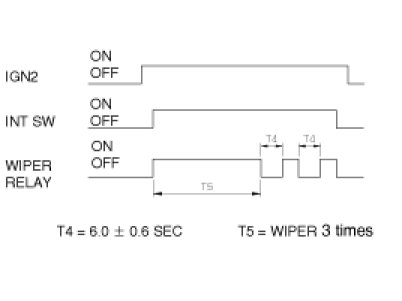

[INT Mode]
