Courtesy Lamp: Service and Repair

Removal

1. Disconnect the negative(-) battery terminal.

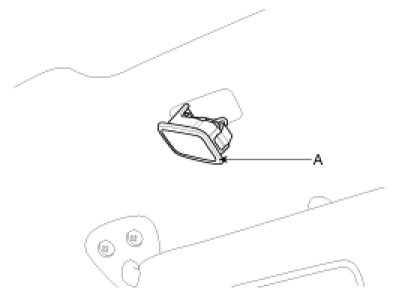

2. Remove the vanity lamp lens(A) and then remove the bulb.

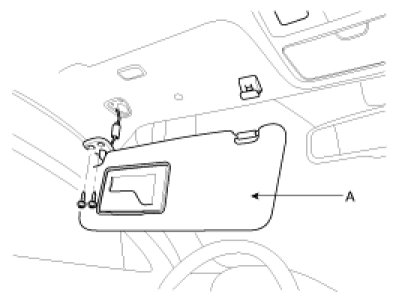

3. Remove the sunvisor(A) after loosening the screws(2EA).

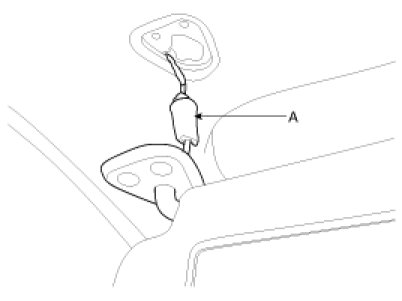

4. Disconnect the sunvisor connector(A).






Installation

1. Install the vanity bulb.
2. Install the vanity lamp lens.
3. Install the sunvisor assembly.
