Center Mounted Brake Lamp: Testing and Inspection

Inspection

1. First make sure that the stop lamps come on when the brake pedal is pressed.
If necessary, replace the bulb.

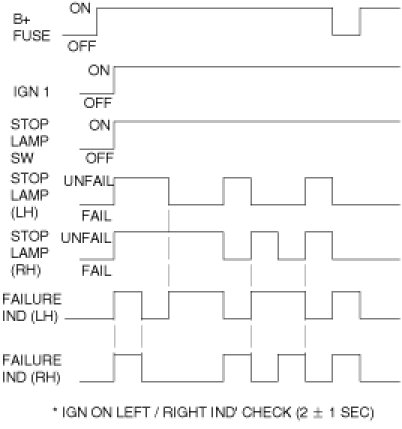

2. Check for operation of this function properly as shown in figure.




3. Remove the rear right pillar lower trim.

4. Check the voltage between NO.1 terminal of harness connector and ground when the IG is turned on and the brake pedal is pressed.

Standard value :12V (for 2 ± 1sec.)
