Center Mounted Brake Lamp: Service and Repair

Removal

1. Disconnect the negative(-) battery terminal.

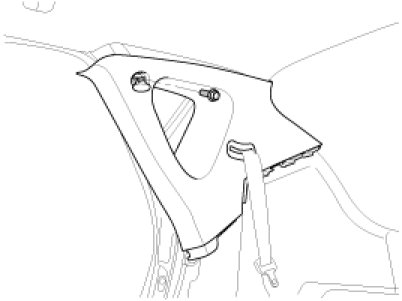

2. Remove the rear right pillar lower trim(A).

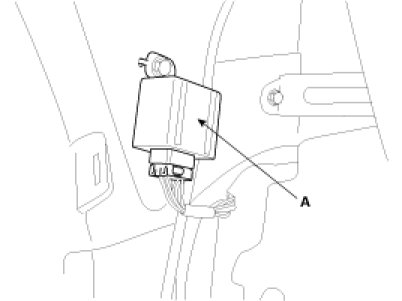

3. Remove the stop lamp failure unit (A) after loosening a bolt and disconnecting the unit connector.






Installation

1. Install the stop lamp failure unit.
2. Install the rear right pillar lower trim.
