Backup Lamp Switch: Testing and Inspection

Backup Lamp Switch

Inspection

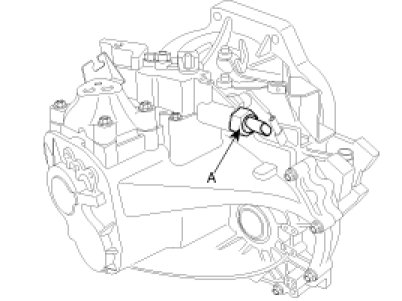

1. Disconnect the backup lamp switch(A).

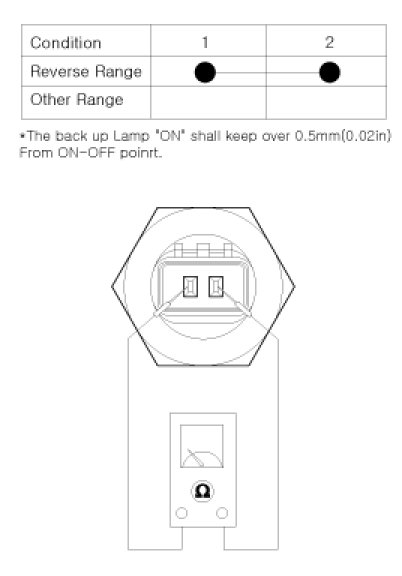

2. Check the continuity between no. 1 and 2 terminals of backup lamp switch.
When the shift lever is in reverse, there should be continuity.




3. If necessary, repair or replace the backup lamp switch.

Tightening torque :
30-35 Nm (3.0-3.5 kgf.m, 21.7-25.3 lb-ft)
