TPMS Receiver

Replacement

1. Disconnect the battery negative cable from the battery.

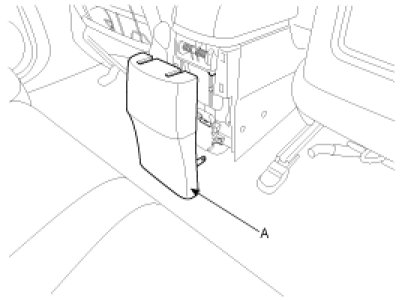

2. Remove the floor console rear cover (A).

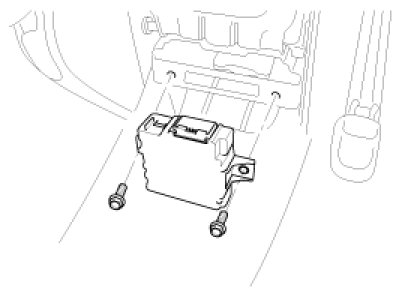

3. Remove the malfunctioning part and fit new part.




4. Reinstall the floor console rear cover.
5. Connect the battery negative cable to the battery.
6. Perform the VIN and Vehicle name writing procedure.
7. Perform the sensor registration procedure.
