Blower Motor Relay: Service and Repair

Replacement

Check for continuity between the terminals.
1. Disconnect the negative (-) battery terminal.

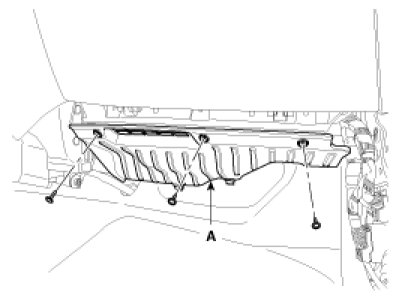

2. Remove the crashpad lower cover(A)

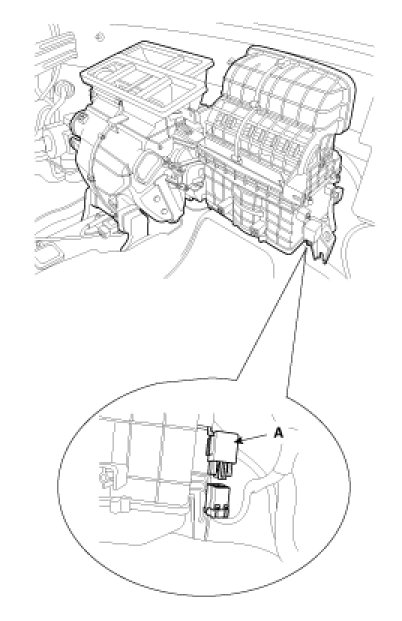

3. Disconnect the connector of the blower relay at the below blower unit.
4. Remove the blower relay (A) after loosening the mounting screw.




5. Install in the reverse order of removal.
