Evaporator Temperature Sensor / Switch: Service and Repair

Replacement

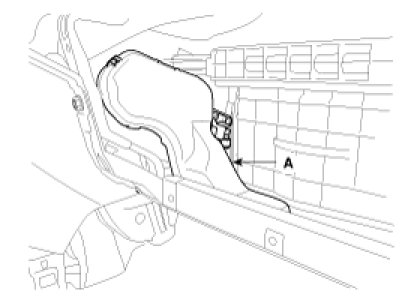

1. Remove the crash pad lower panel (A).




2. Remove the glove box.

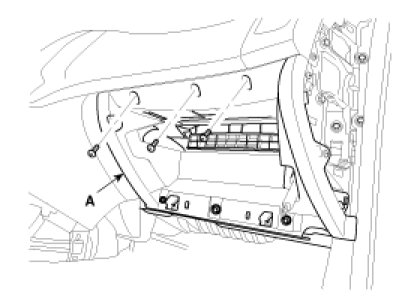

3. Remove the Glove box houging (A).

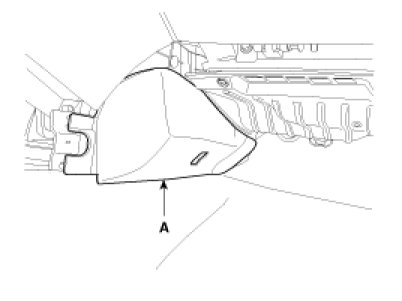

4. Remove the shower duct (A).

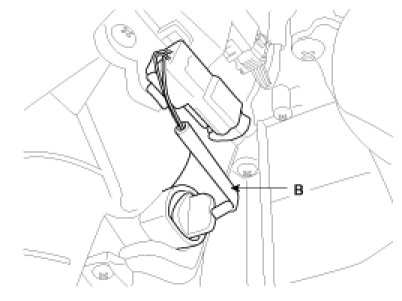

5. Remove the evaporator temperature sensor (B), by pulling it after rotating 90° in a counter clock wise direction.




6. Installation is the reverse order of removal.
