Repair procedures

Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the mat (A).

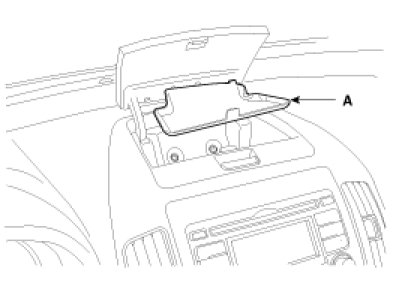

3. Remove the upper tray (A).

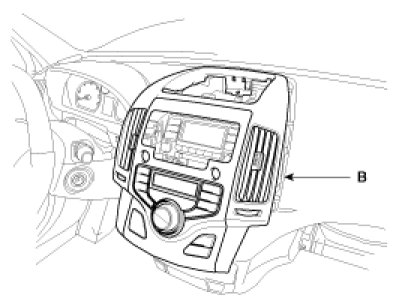

4. Remove the center facia lower panel (B) by pulling it using a screw driver (-) after loosening a screw. Take care of fixing clips.

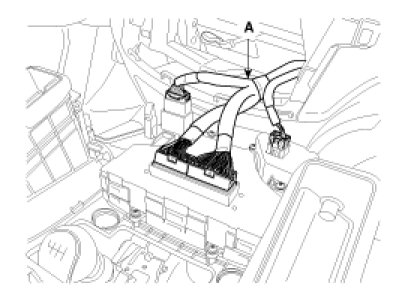

5. Disconnect the connectors (A) from the center facia.

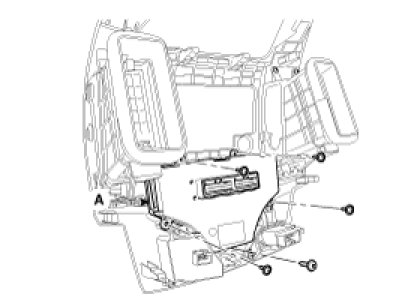

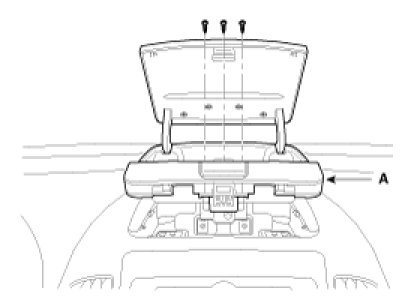

6. Remove the heater & A/C controller (A) after loosening the screw.




7. Installation is the reverse order of removal.
