Blower Motor: Service and Repair





Replacement

1. Disconnect the negative (-) battery terminal.

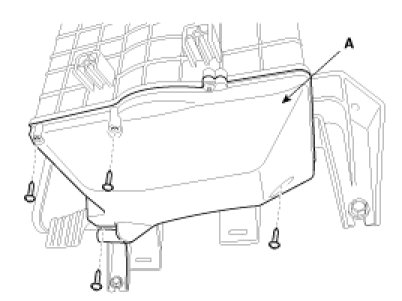

2. Remove the blower motor cover(A).




3. Remove the blower motor cover (A).

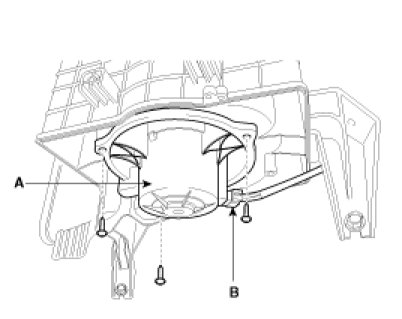

4. Disconnect the connector (A) of the blower motor and then remove the blower motor (A) after loosening the mounting screws




5. Installation is the reverse order of removal.
