Exhaust Pipe: Service and Repair

Removal

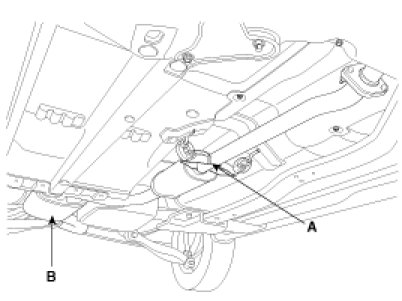

1. Disconnect the front oxygen sensor connector(B).
2. Remove the front muffler(A).

Tightening torque
39.8 - 58.8Nm (4.0 - 6.0kgf.m, 28.9 - 43.4lb-ft)





3. Remove the center muffler(A) and the main muffler(B).

Tightening torque
39.8 - 58.8Nm (4.0 - 6.0kgf.m, 28.9 - 43.4lb-ft)
