Home >> Hyundai >> 2009 >> Elantra Touring L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Power Distribution and Passenger Compartment Fuse Details >> Wiring Diagram Index

Wiring Diagram Index

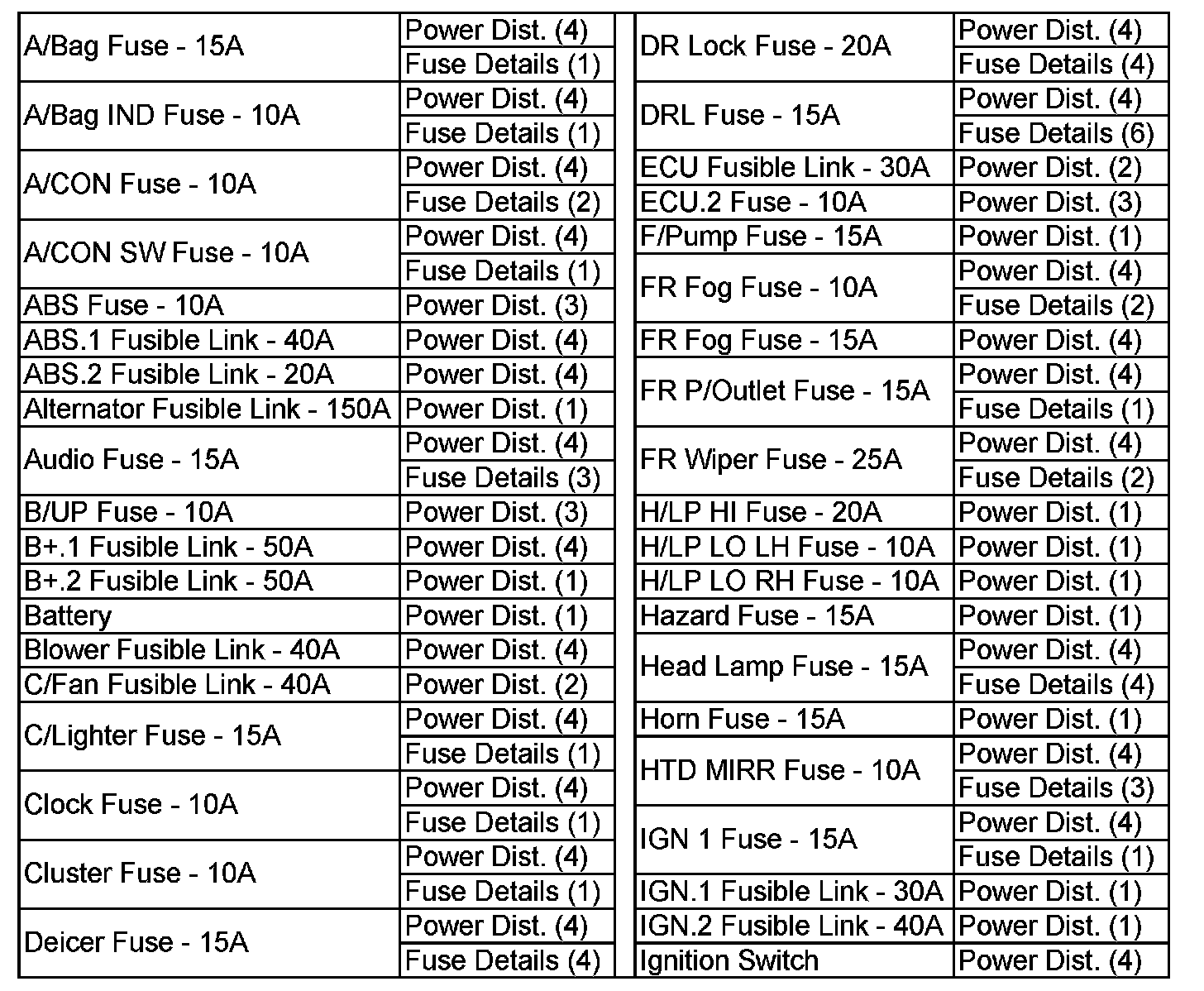

A/Bag Fuse 15A - Ignition Switch:

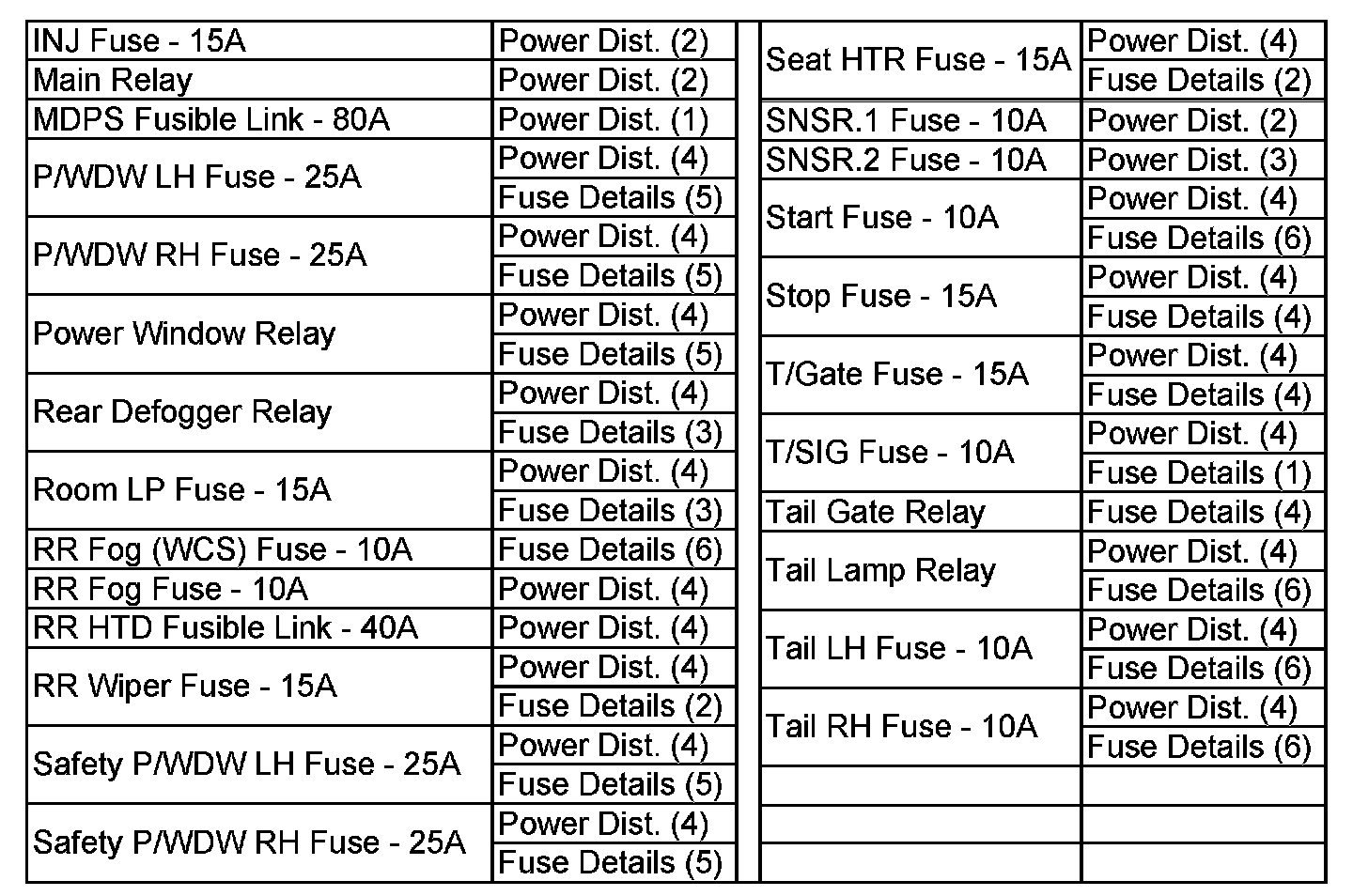

INJ Fuse 15A - Tail RH Fuse 10A:
