Rear Door Lock Switch
Rear Door Lock Switch
1. Remove the rear door trim.
2. Remove the rear door module.

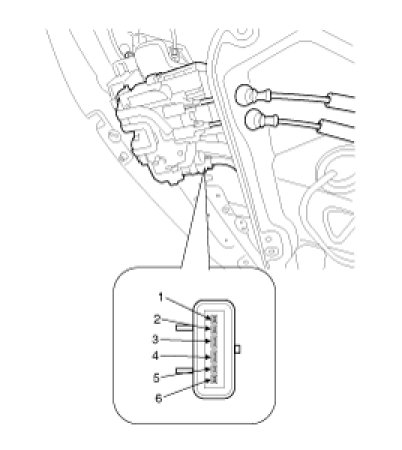

3. Disconnect the connectors from the actuator.

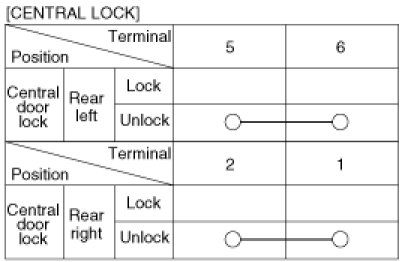

4. Check for continuity between the terminals in each switch position according to the table.
Rear Door Lock Switch
1. Remove the rear door trim.
2. Remove the rear door module.
3. Disconnect the connectors from the actuator.
4. Check for continuity between the terminals in each switch position according to the table.
