Repair Procedures





Replacement

Seat Assembly Replacement
1. Remove the seat cushion (A).

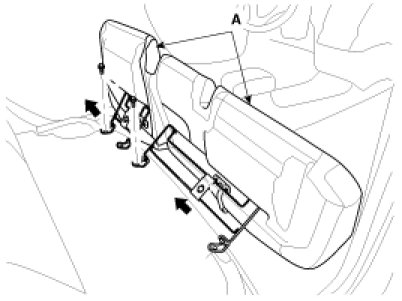

2. After loosening the mounting bolts, then remove the rear seat back (A).




3. Installation is the reverse of removal.
