Seat Cushion Cover Replacement





Seat Cushion Cover Replacement
1. Remove front seat assembly.
2. Remove the recliner cover.

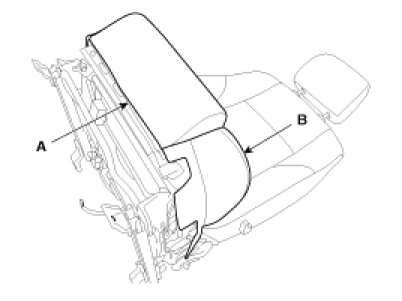

3. After disconnect the protector (A), then remove the seat cushion (B).

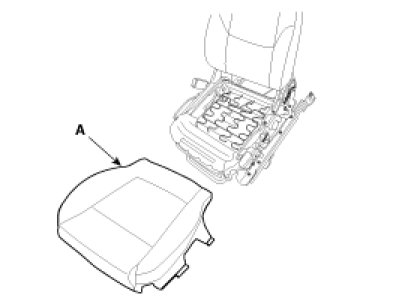

4. After removing the hogring clip on the front of seat cushion and remove the seat cushion cover (A).




5. Installation is the reverse of removal.
