Seat Back Cover Replacement

Seat Back Cover Replacement
1. Remove front seat assembly.
2. Remove the recliner cover.

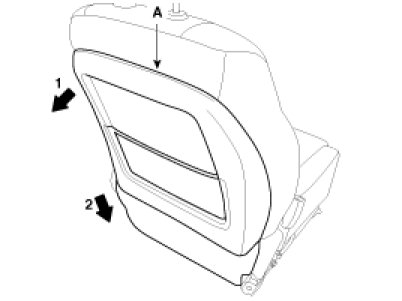

3. After disconnecting the scuff band, remove the seat back panel.

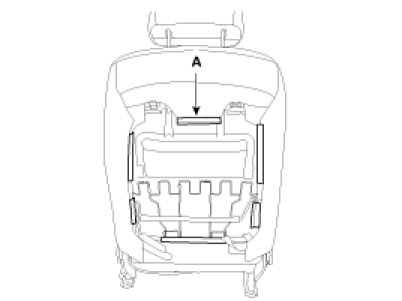

4. Disconnect the protector (A) from the back frame.

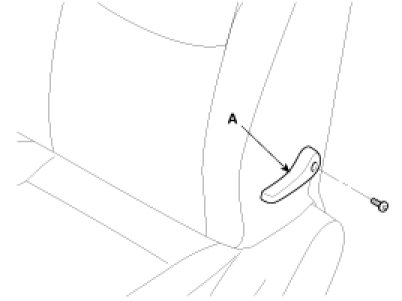

5. Remove the lumber sport lever (A).

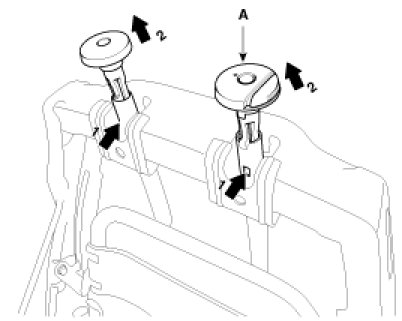

6. Pull out the headrest guides (A) while pinching the end of the guides, and remove them.

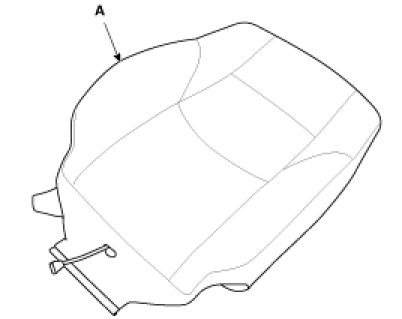

7. After removing the tape on the front of seat back remove the seat back cover (A).




8. Installation is the reverse of removal.
