Recliner Cover Replacement





Recliner Cover Replacement

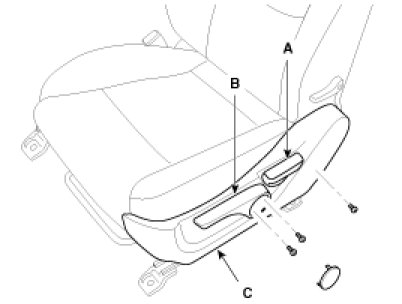

1. After loosening the recliner mounting screw, then remove the recliner lever (A) and height lever (B).
2. After loosening the mounting screws, then remove the recliner cover (C).

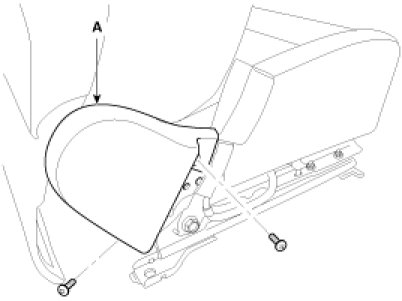

3. Gently detach the hook, remove the recliner cover (A).




4. Installation is the reverse of removal.
