Sunroof Assembly Replacement

Sunroof Assembly Replacement
1. Remove the follows parts.
A. Door scuff trim.
B. Front pillar trim.
C. Center pillar trim.
D. Rear pillar trim.
E. Headlining.
F. Sunroof glass.

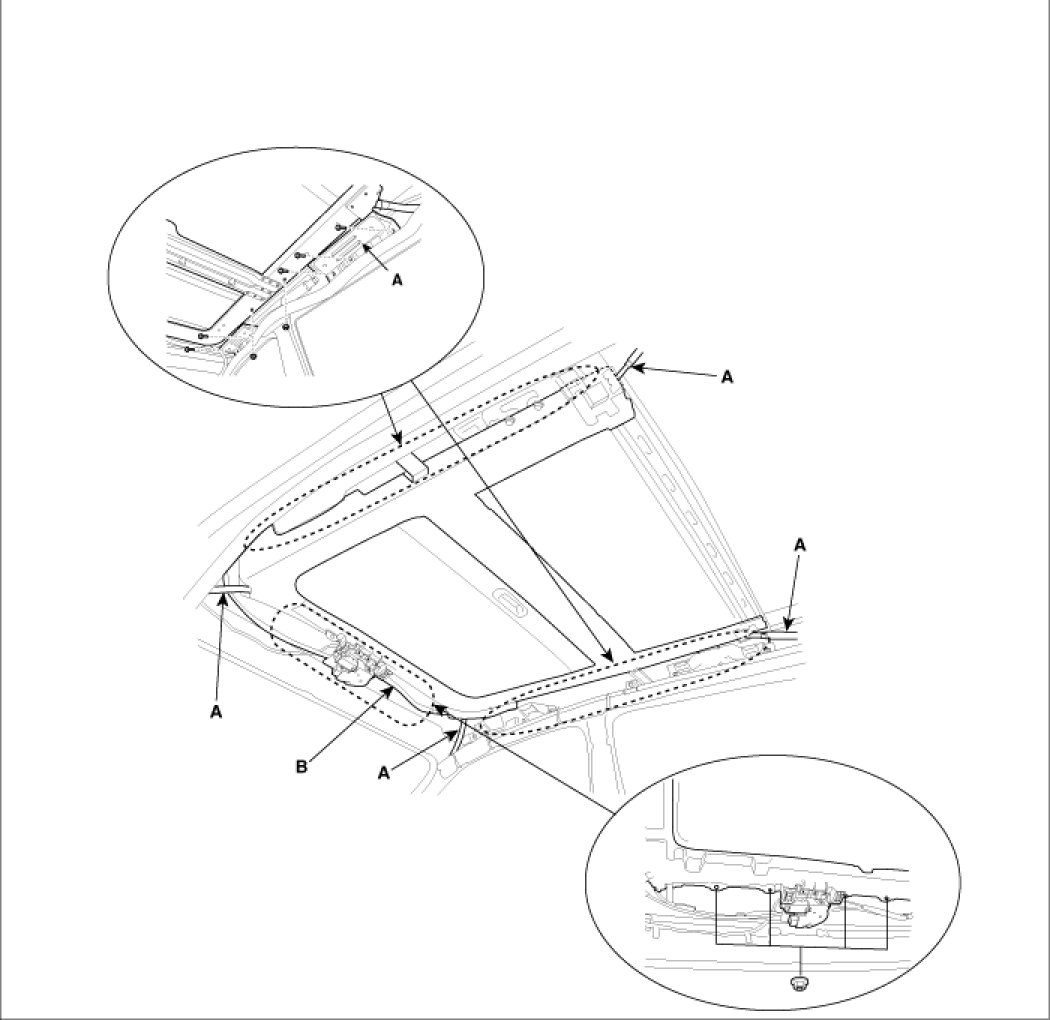

2. Disconnect the drain tubes (B).
3. Remove the bracket (A).
4. After loosening the mounding bolts and nuts, remove the sunroof assembly (B).

NOTE:
- Take care not to scratch the interior trims and other parts.

5. Installation is the reverse of removal.
