Guide Assembly Replacement

Guide Assembly Replacement
1. Remove the sunroof assembly.

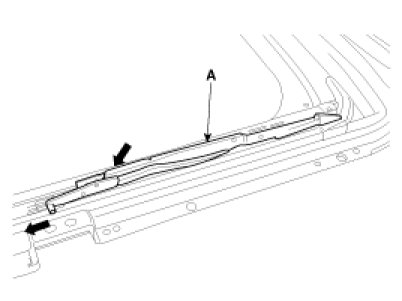

2. Remove a guide assembly (A) after lowering a guide thoroughly by pushing a slide (B) to rear.

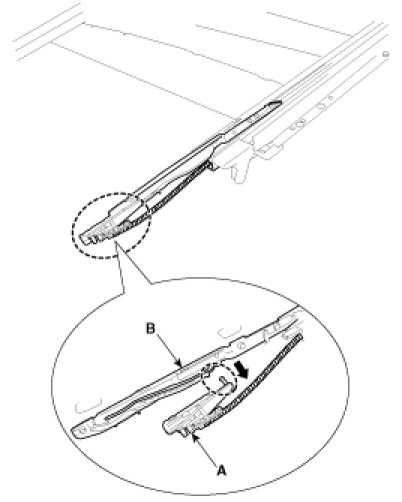

3. Remove the guide (A) and slide (B).




4. Installation is the reverse of removal.

NOTE:

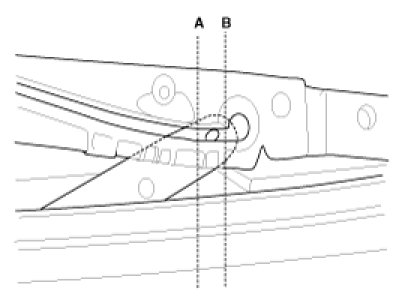

- Make sure to align the slide with the center of"A" and "B"
- Make sure to initialize the motor.
