Glove Box Replacement

Glove Box Replacement

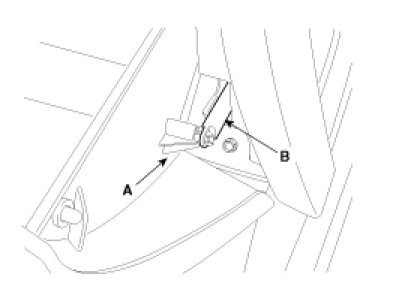

1. Disconnect the damper (B) from the glove box (A).

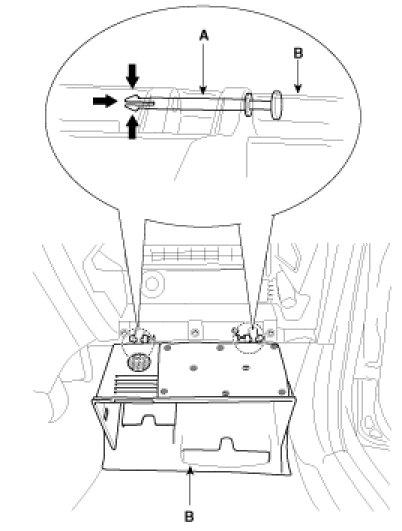

2. Remove the glove box (A) from the lift (B).

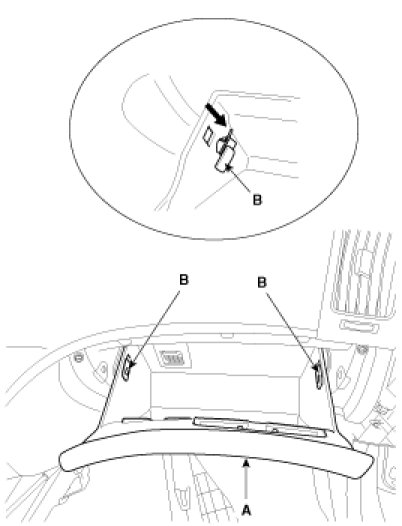

3. Disconnect the pine (A), then remove the glove box (B).

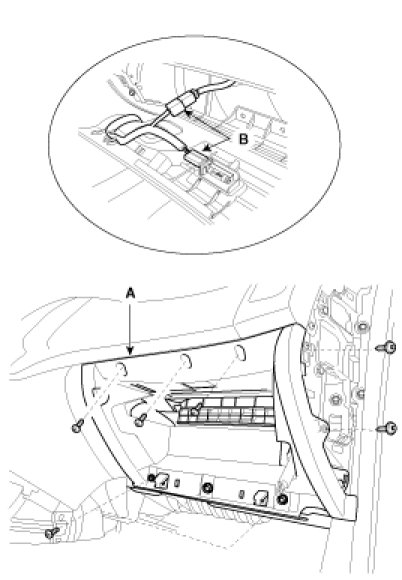

4. After loosening the mounting screws, then remove the glove box housing (A).
5. Disconnect the connector (B).




6. Installation is the reverse of removal.
