Overhead Console Lamp

Removal

1. Disconnect the negative (-) battery terminal.

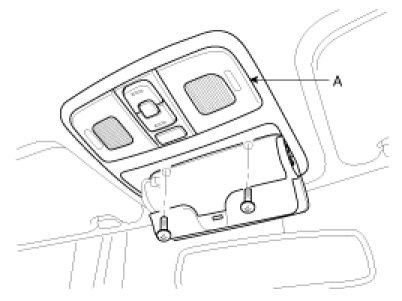

2. Remove the overhead console lamp(A) after loosening the overhead console lamp screw(2EA).

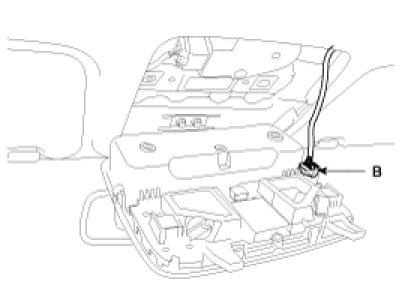

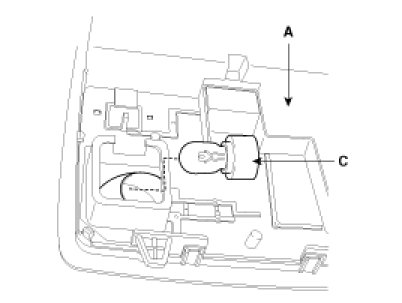

3. Disconnect the sunroof switch and lamp connector (B) and then remove the overhead console (A) lamp (C).










Installation

1. Install the overhead console lamp after connecting the sunroof switch and lamp connector.
2. Install the lens after tightening 2 screws.
