Front Fender: Service and Repair

Replacement

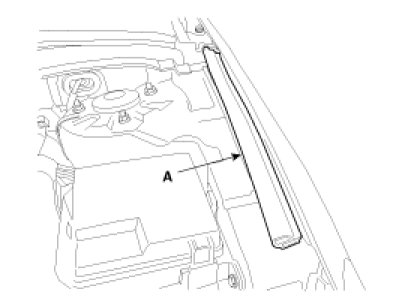

1. Remove the hood side seal strip (A).




2. Remove the windshield side molding (A).

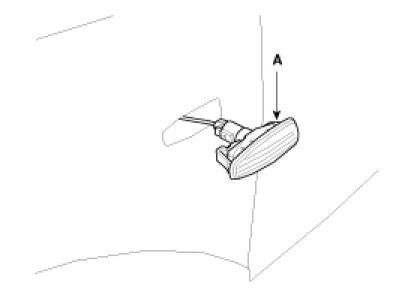

3. Remove the fender side lamp (A).

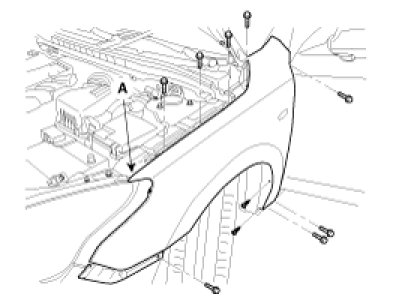

4. Remove the fender mounting bolts (A).

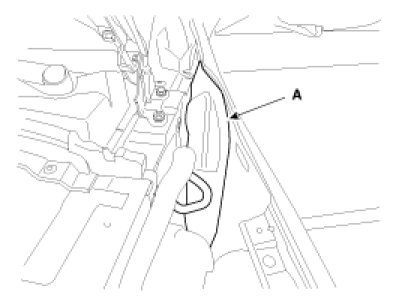

5. Remove the insulator pad (A).

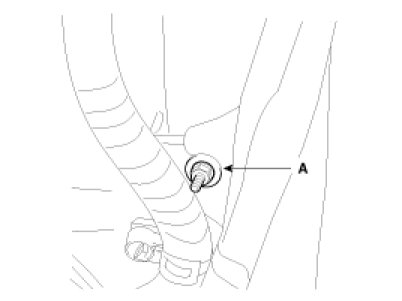

6. After loosening the mounting nut (A), remove the fender.




7. Installation is the reverse of removal.
