Trunk / Liftgate Handle: Service and Repair

Outside Handle Replacement
1. Remove the tailgate trim.

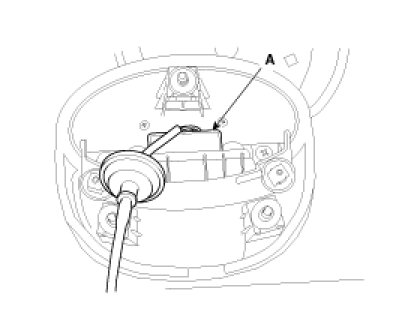

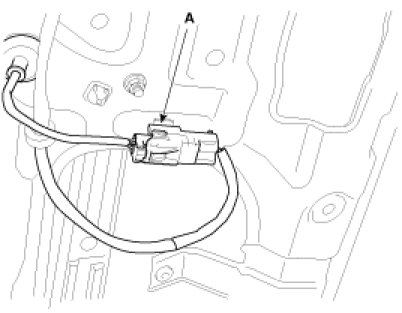

2. Disconnect the connector (A).




3. After loosening the tailgate garnish mounting nuts, then tailgate garnish (A).




4. Remove the outside handle (A).




5. Installation is the reverse of removal.

NOTE:
- Make sure the tailgate opens properly and locks securely.
