Fuel Door: Service and Repair

Replacement

Fuel Fill Door Replacement
1. Open the fuel door.

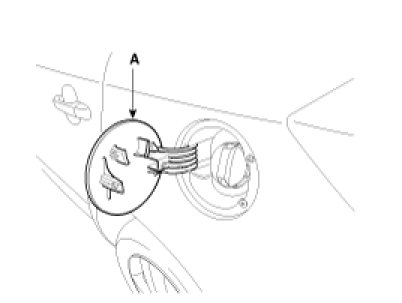

2. Loosen the bolts, then remove the fuel filler door (A).




3. Installation is the reverse of removal.

NOTE:
- Make sure the fuel fill door opens properly and locks securely.

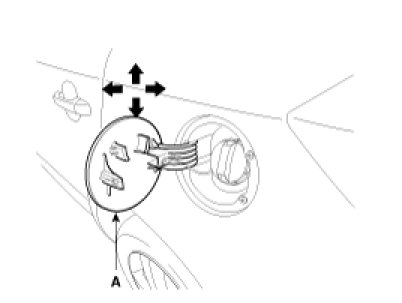

4. Check that the fuel fill door (A) fit flush against the body. If necessary, adjust it.
