Trip Computer: Testing and Inspection





Inspection

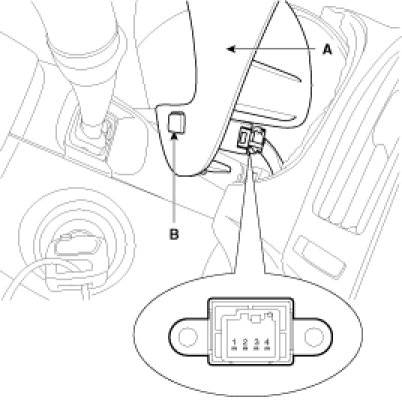

1. Remove the cluster facia panel (A).

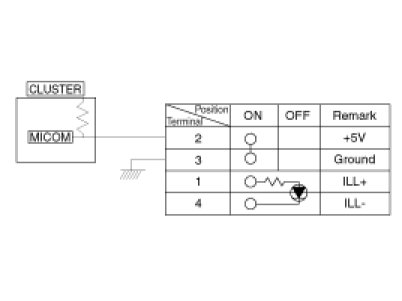

2. Operate the switch (B) and check for continuity between terminals with an ohmmeter.
