Radio, Stereo, and Compact Disc: Testing and Inspection

Troubleshooting

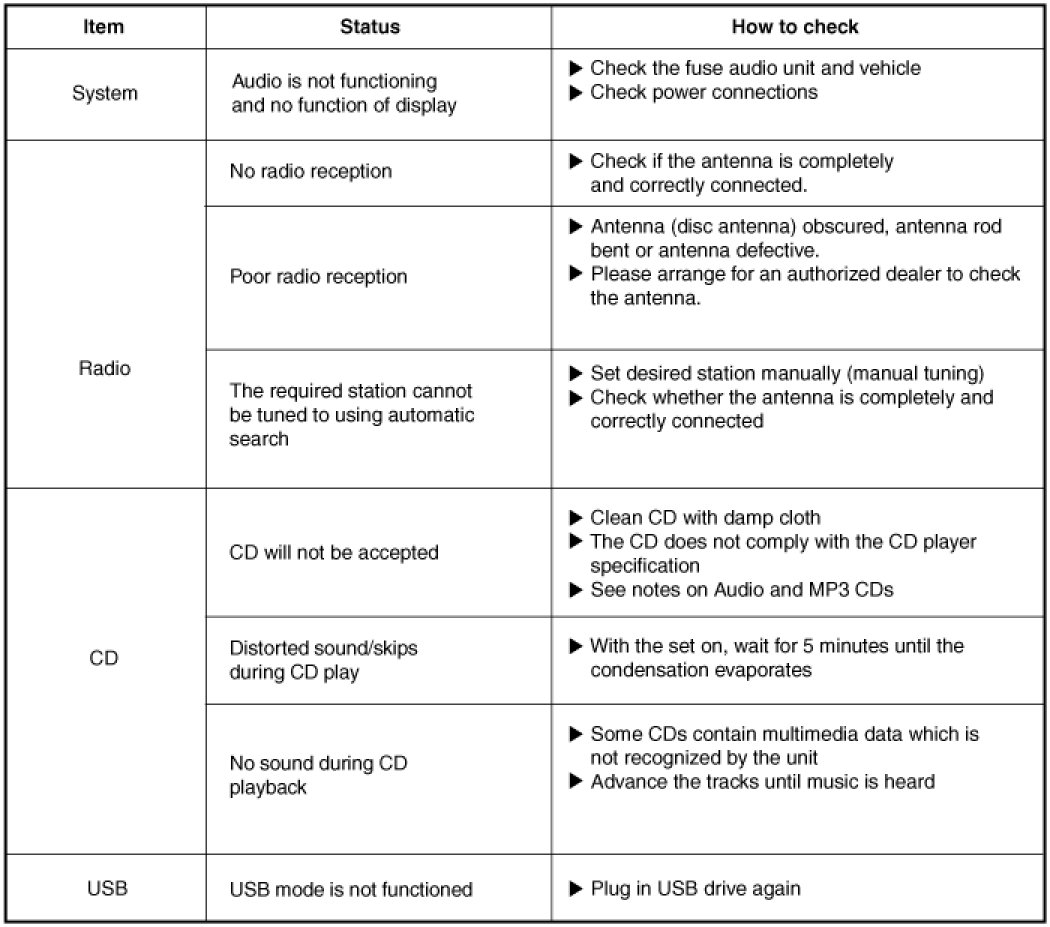

Customer Complaint Analysis Check Sheet

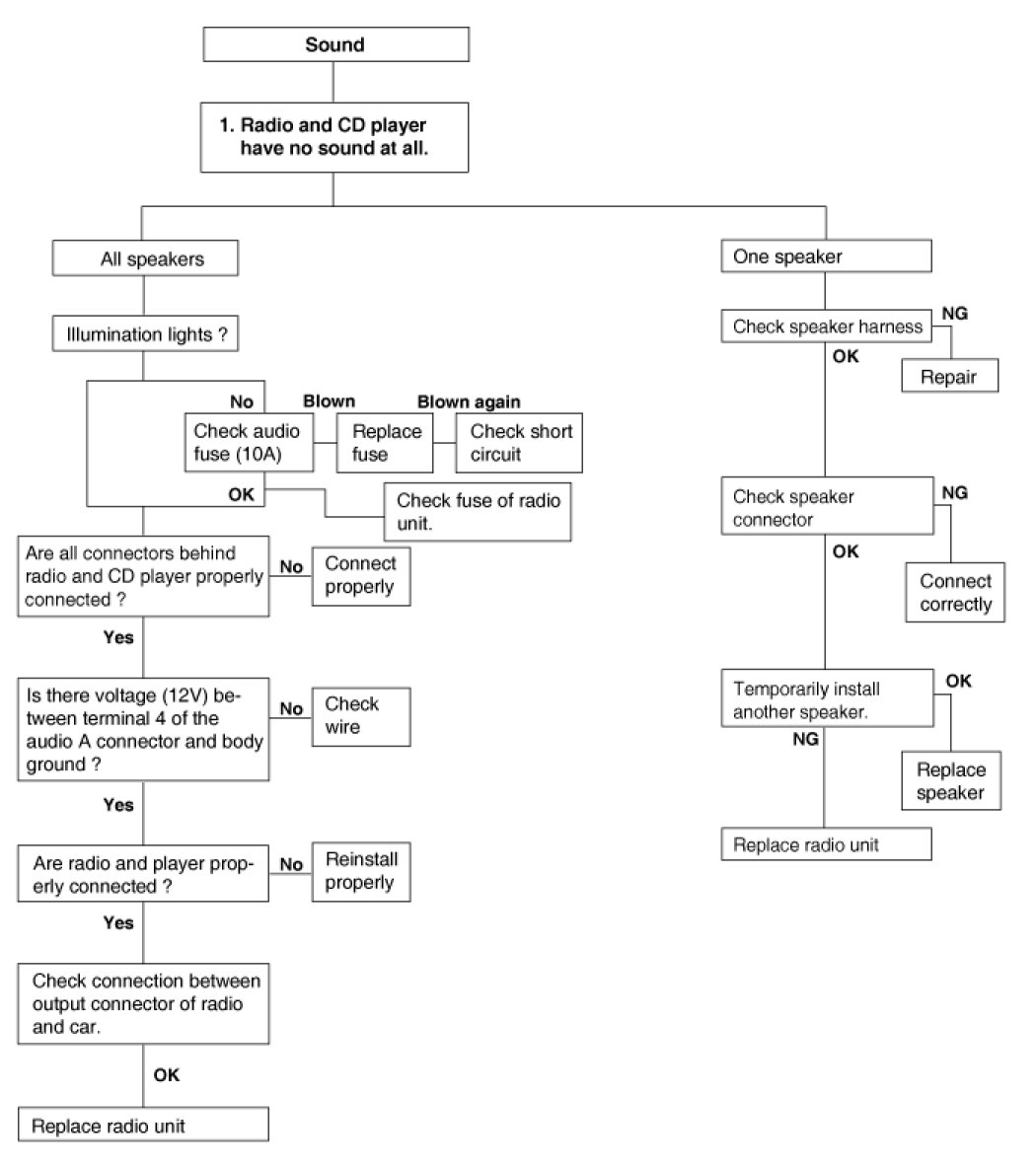

1. System Check Procedure

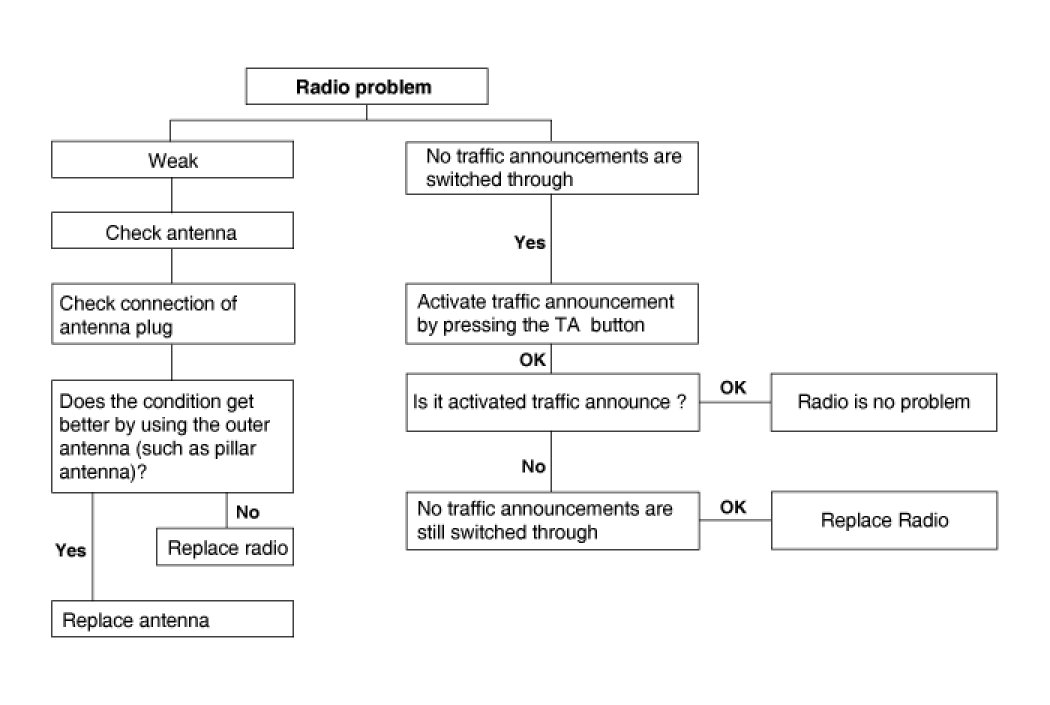

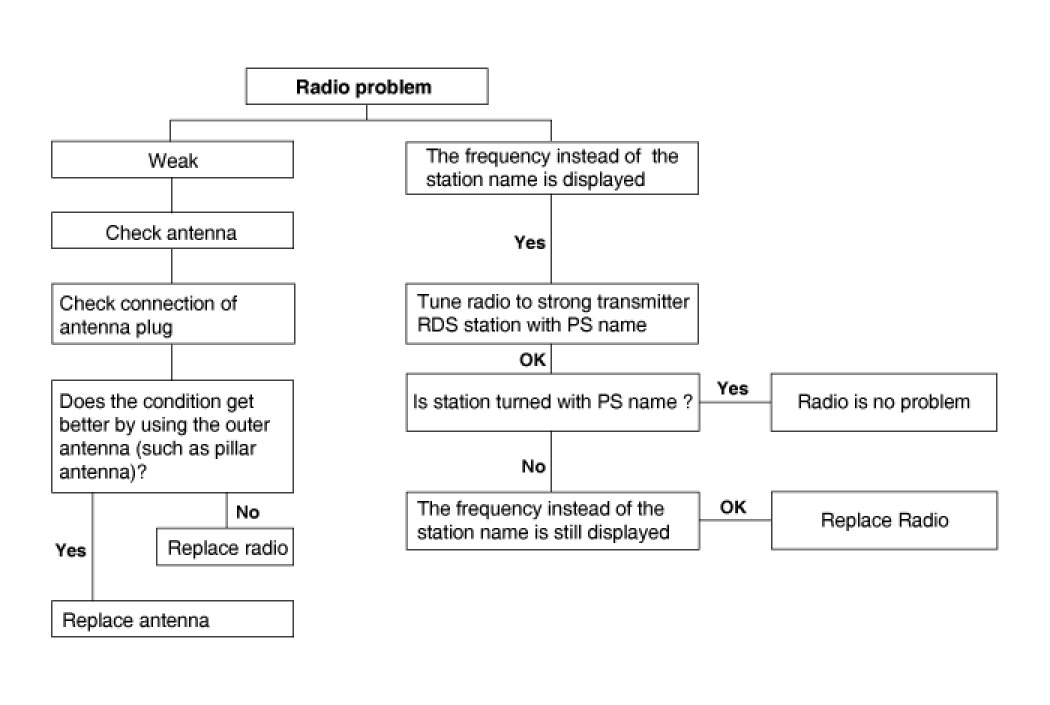

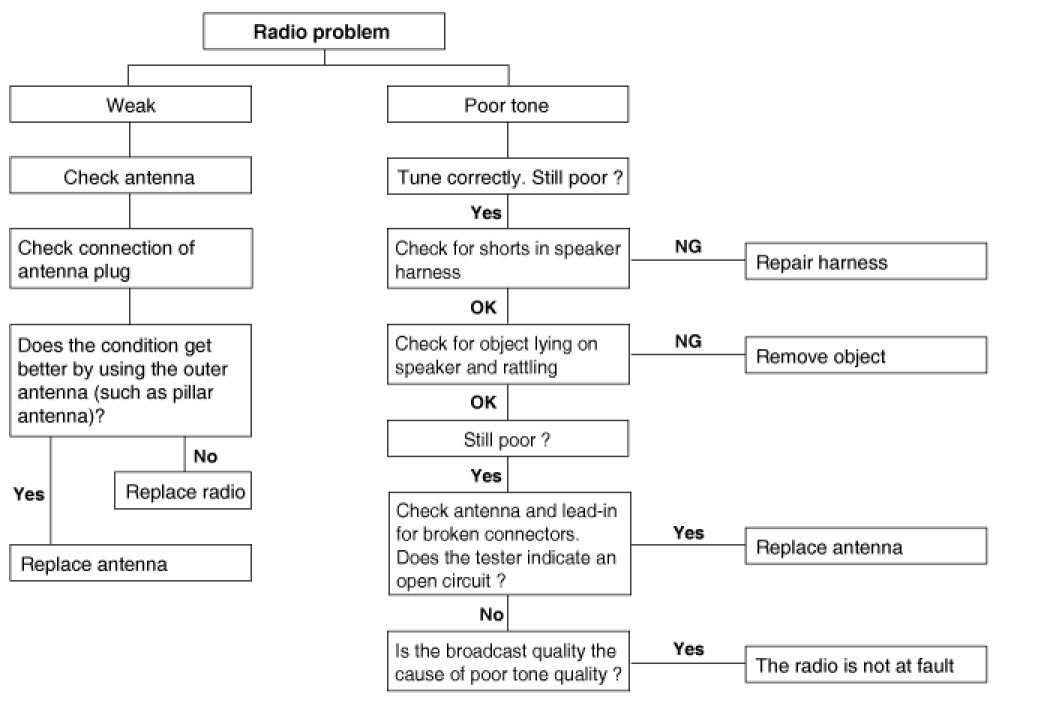

2. Radio Check Procedure

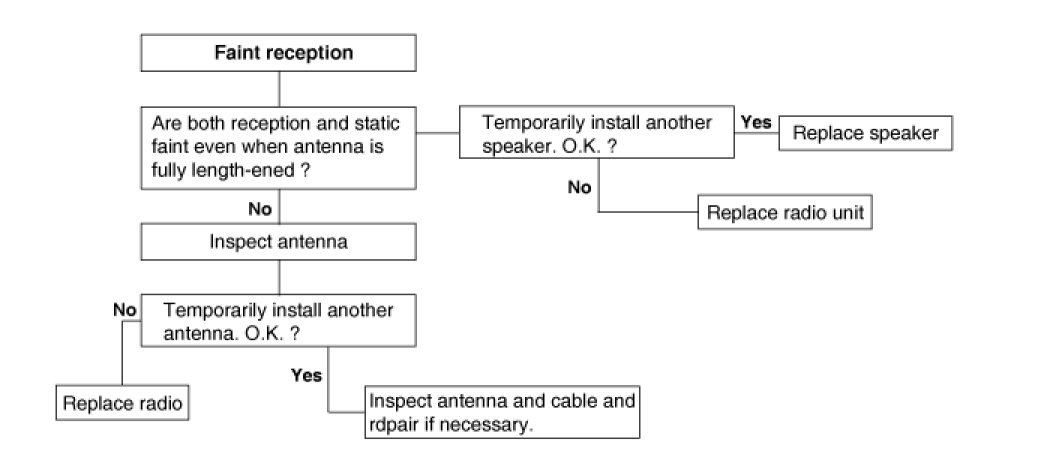

Chart 1

Chart 2

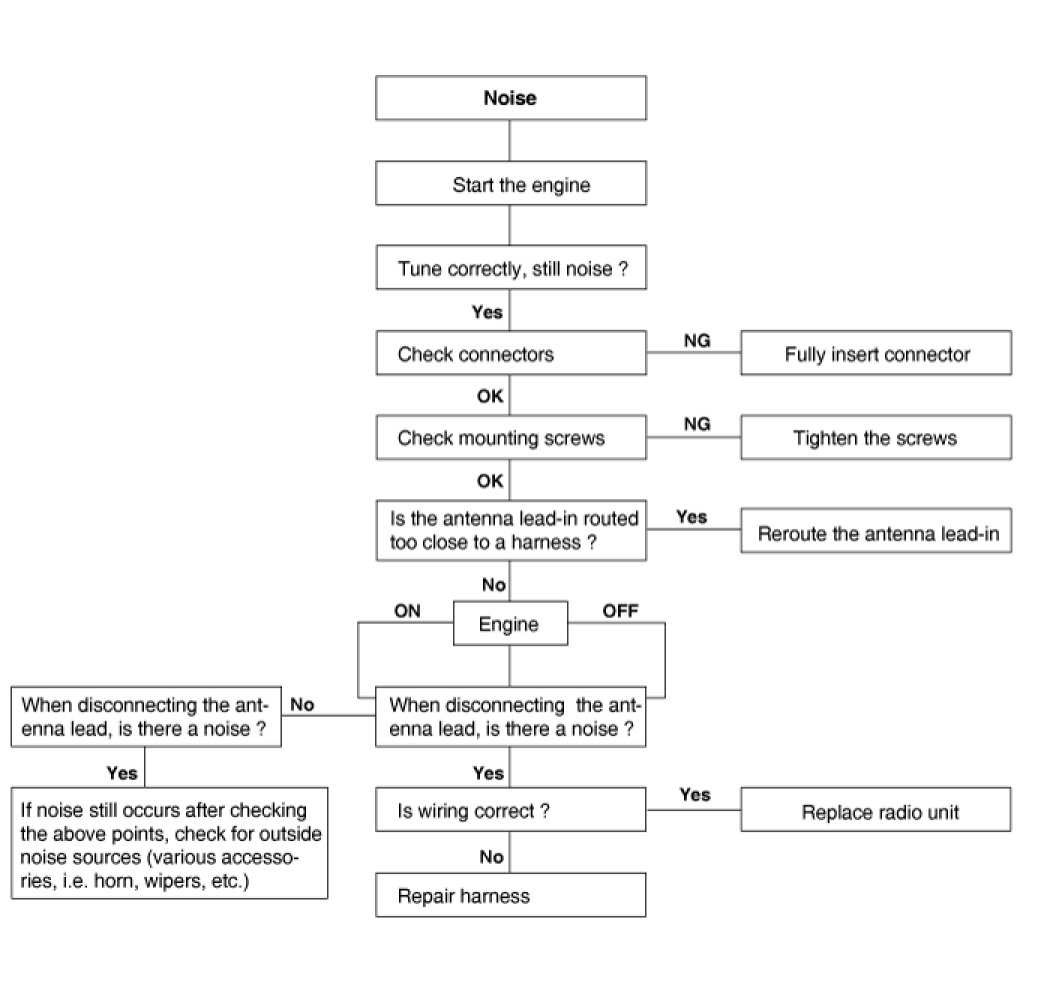

Chart 3

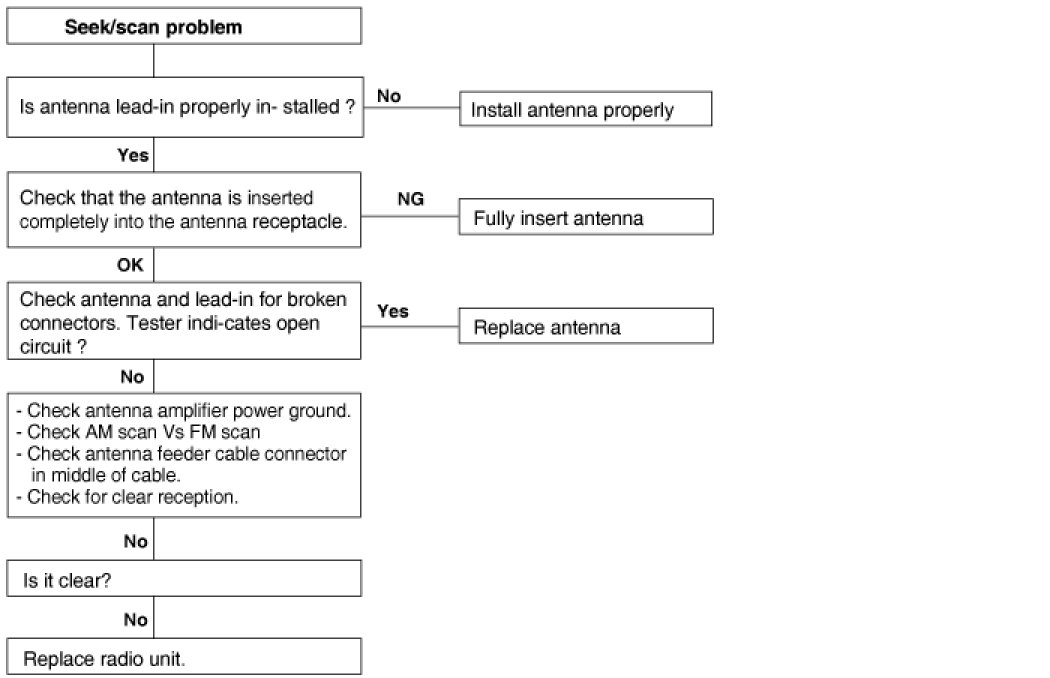

Chart 4

Chart 5

Chart 6

3. CD Check Procedure

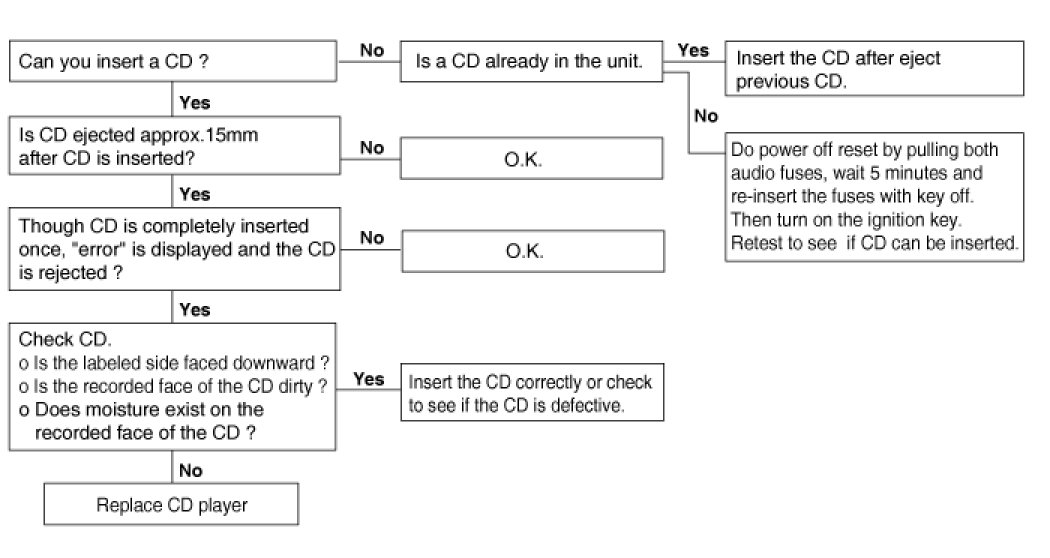

Chart 1. CD Will Not Be Accepted

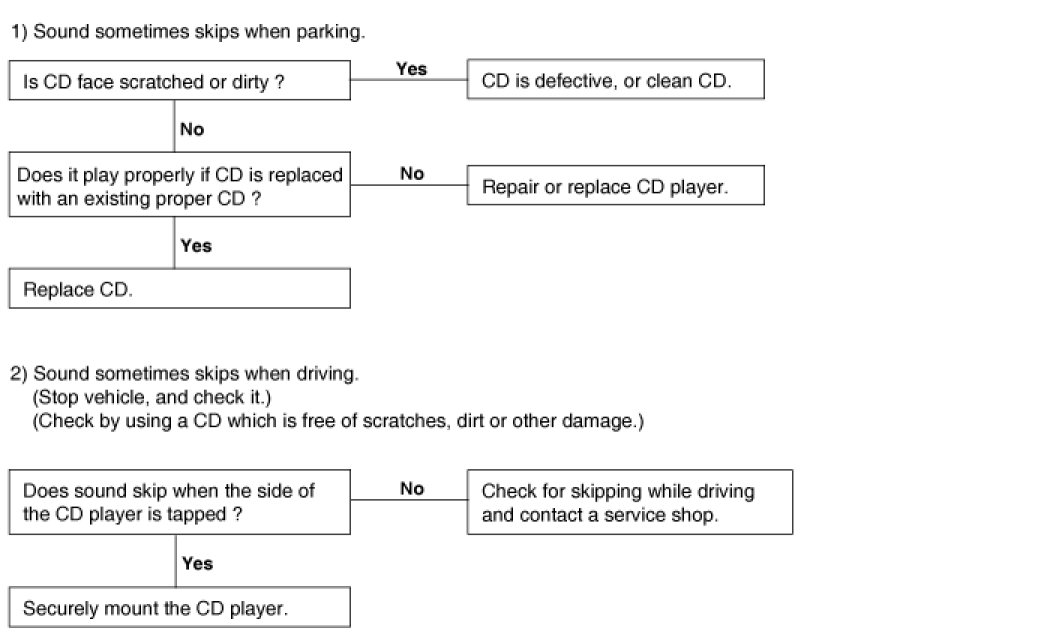

Chart 2. CD Sound Skips

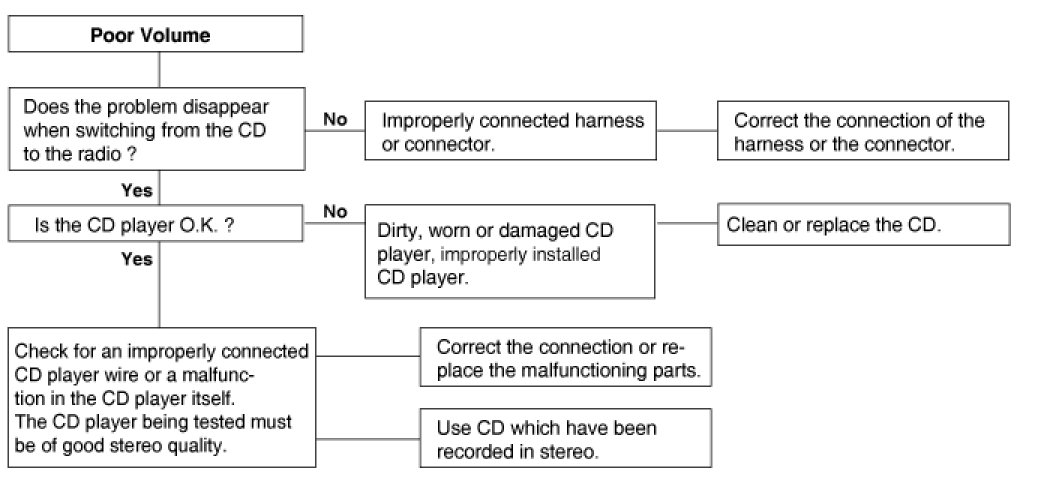

Chart 3

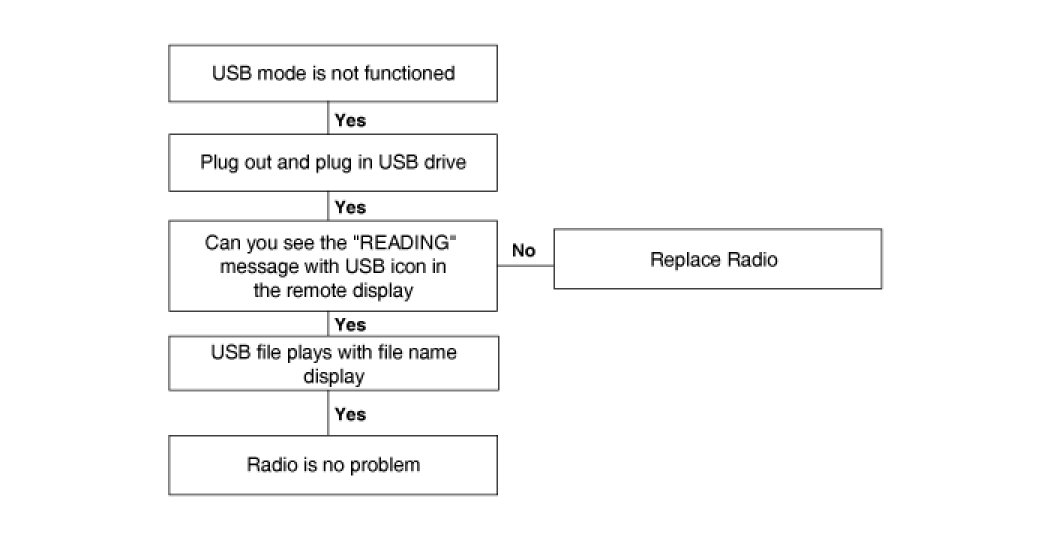

4. USB Check Procedure
