Speakers

Removal

Front Speaker
1. Remove the front door trim.
.

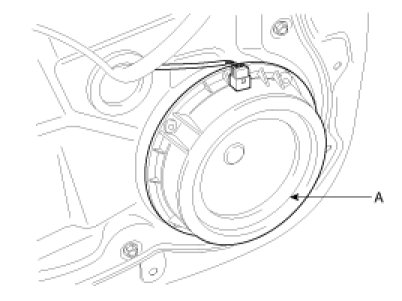

2. Remove the front speaker (A) after removing 4 rivets.





Rear Speaker
1. Remove the rear door trim.
.

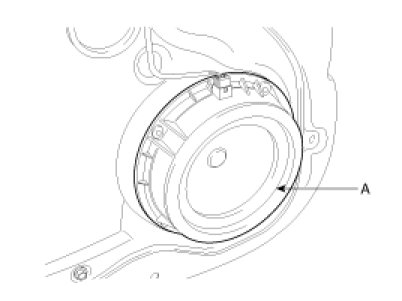

2. Remove the rear speaker (A) after removing 4 rivets.





Tweeter Speaker
1. Remove the front door delta cover.
.

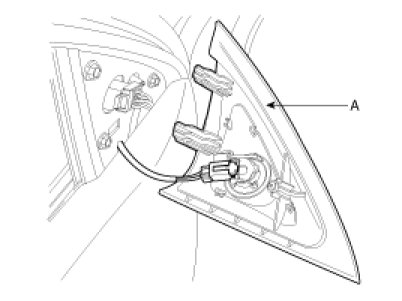

2. Remove the tweeter speaker (A) after disconnecting the connector.






Installation

Front Speaker
1. Install the front speaker.
2. Install the front door trim.

Rear Speaker
1. Install the rear speaker.
2. Install the rear door trim.

Tweeter Speaker
1. Install the tweeter speaker after connecting the tweeter speaker connector.
2. Install the front door delta cover.
