Repair Procedures

Removal

1. Disconnect the negative (-) battery terminal.

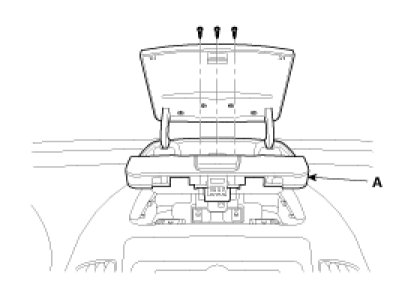

2. Remove the upper tray(A).
.

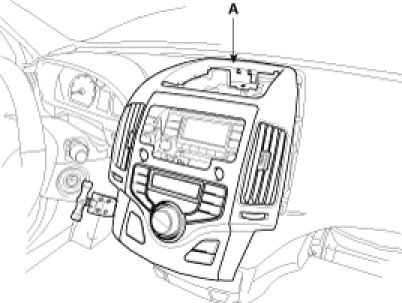

3. Remove the crash pad center facia panel (A).

NOTE:
Take care not to scratch the crash pad and related parts.

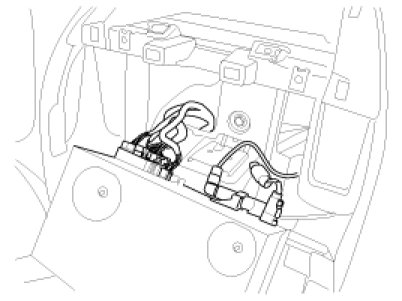

4. Disconnect the connectors from the crash pad center facia panel.

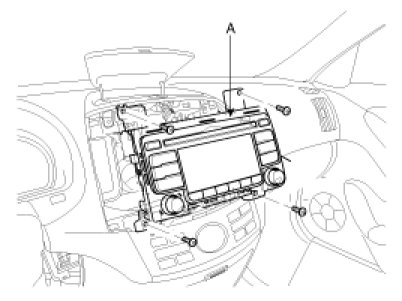

5. Remove the mounting bolts then remove the audio unit(A).

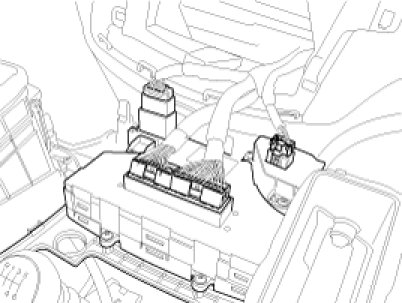

6. Disconnect the audio connectors and cable(A).





External Amplifier
1. Remove the right side trunk trim and disconnecting the connector
.

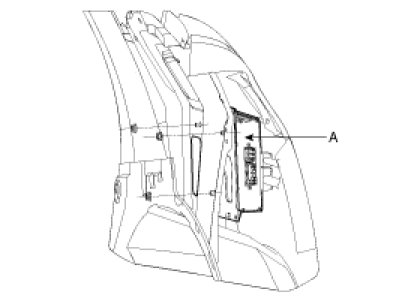

2. Remove the external amplifier(A) after loosening the 3 nuts.






Installation

1. Connect the audio unit connectors and cable.
2. Install the audio unit.
3. Install the crash pad center facia panel.
4. Install the upper tray.
5. Check the audio system.

NOTE:
- Make sure the audio head unit connectors are plugged in properly, and the antenna cable is connected properly.

External Amplifier
1. Install the external amplifier and connect the external amplifier connector.
2. Install the right side trunk trim.
