Immobilizer System





Diagnosis Of Immobilizer Faults

- Communication between the ECM and the SMARTRA.
- Function of the SMARTRA and the transponder.
- Data stored in the ECM related to the immobilizer function.

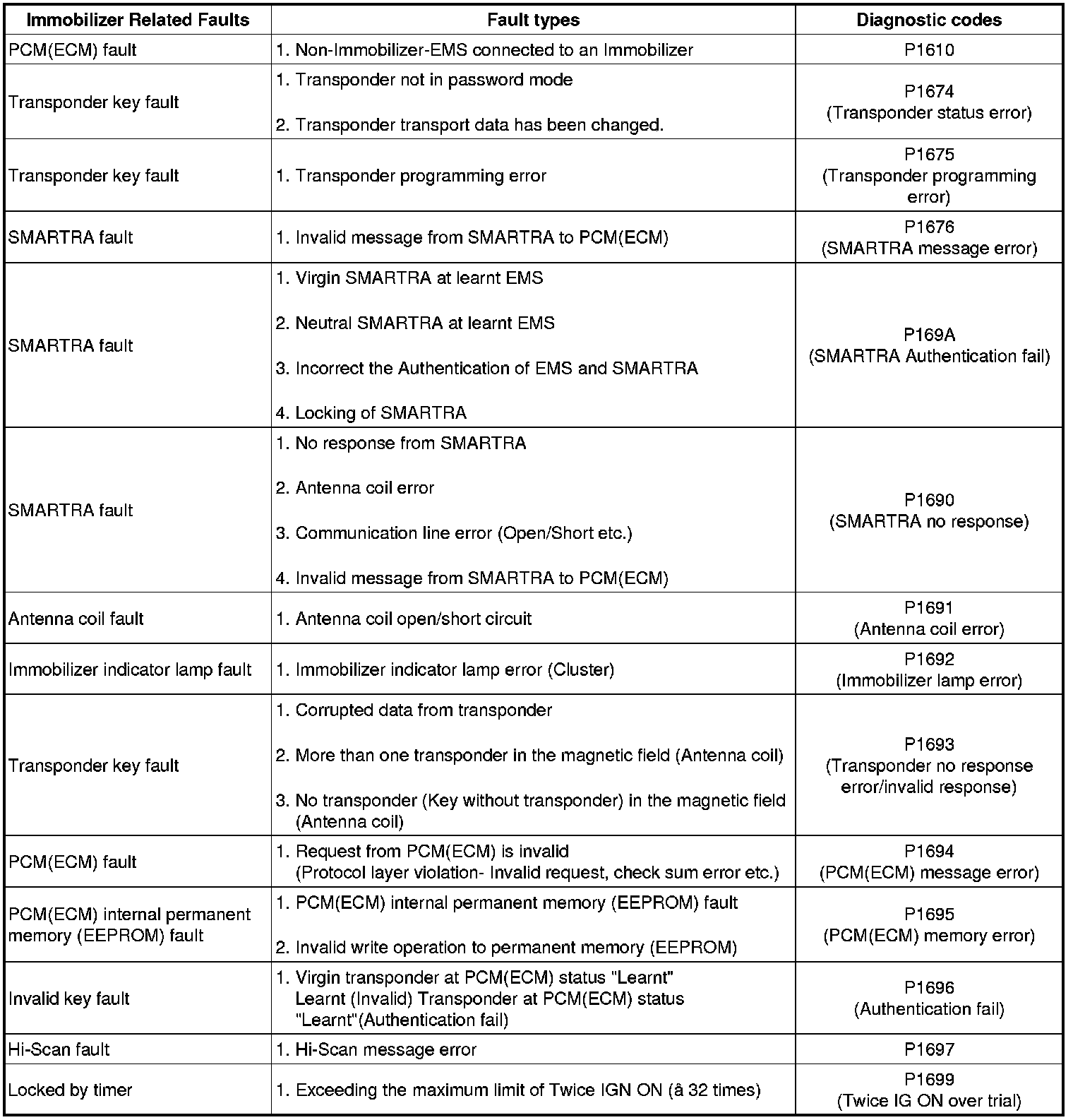

The following table shows the assignment of immobilizer related faults to each type :
