Door Sensor/Switch (For Alarm): Testing and Inspection

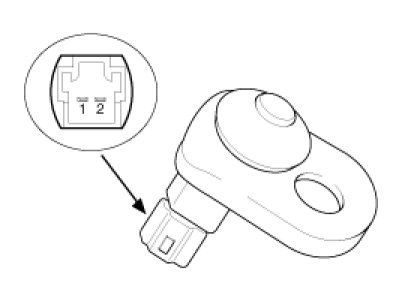

Door Switch

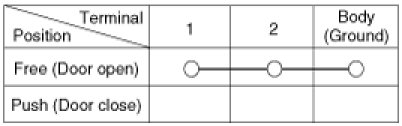

Remove the door switch and check for continuity between the terminals.
