Repair Procedures

Replacement

1. Remove the rear roof trim.

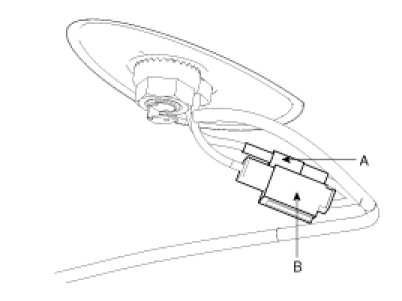

2. Disconnect the antenna connectors (2EA) to the feeder cable connectors.
(A : XM Amplifier connector, B : FM/AM connector)




3. Disconnect the 1P power connector from the roof antenna.

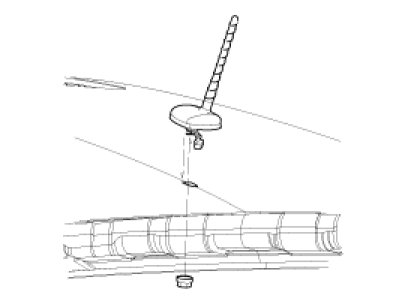

4. Remove the SDARS roof antenna from the roof panel hole after loosening a nut.




5. Installation is the reverse of removal.
