Component Inspection





Component Inspection

1. Ignition "OFF"

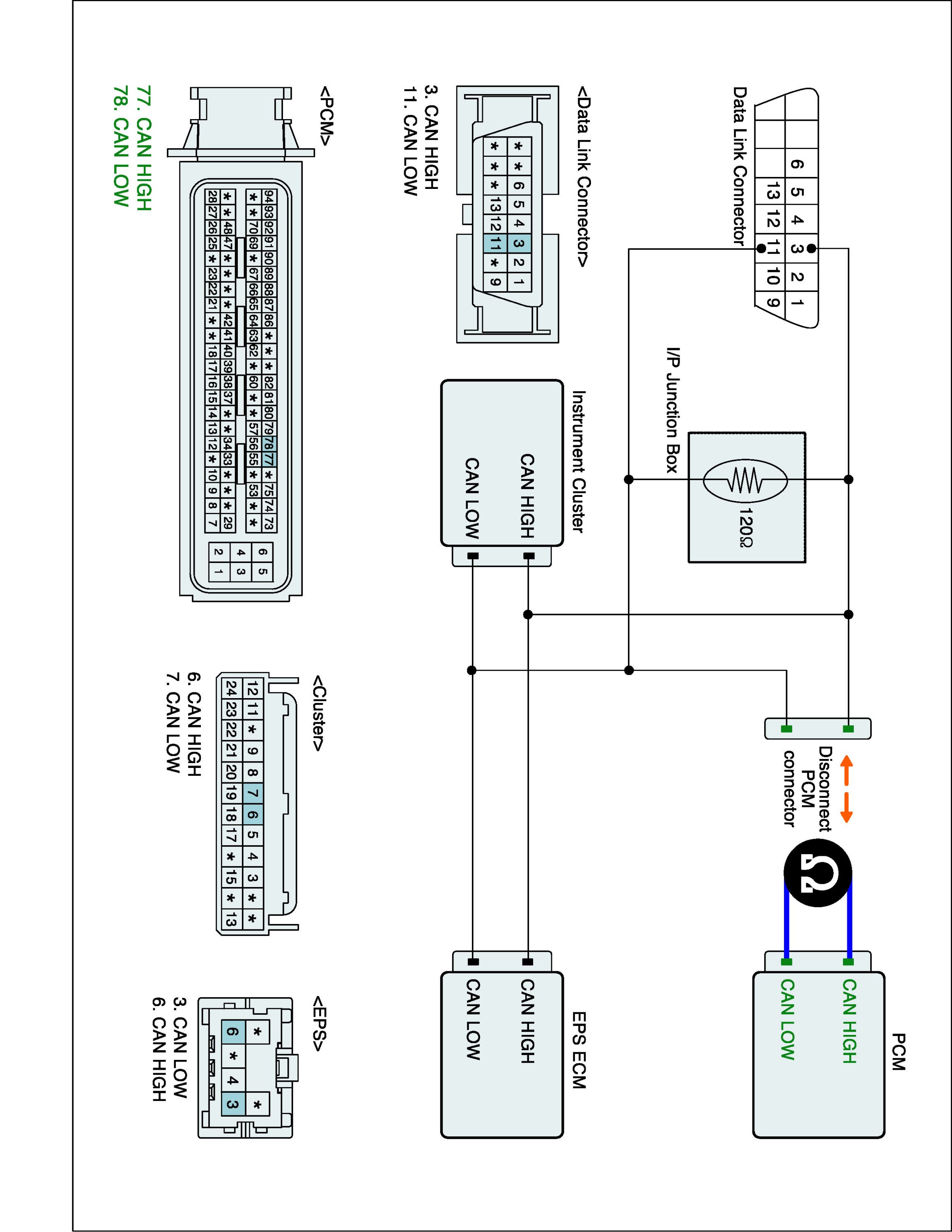

2. Measure resistance between High signal terminal and Low signal terminal of PCM connector (PCM side).

Specification : Approx. 110 - 130 ohms

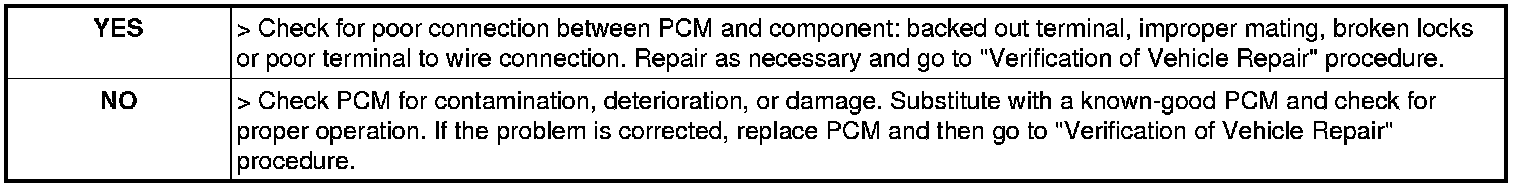

3. Is resistance within the specification ?
