Component Inspection

Component Inspection

1. Check transponder and ECU status
(1) IGN "ON" & Engine "OFF"
(2) Connect scantool to Data Link Connector (DLC).
(3) Erase the DTC and Monitor the "ECU STATUS" Parameter on the Scantool.

Specification : 'LEARNT'

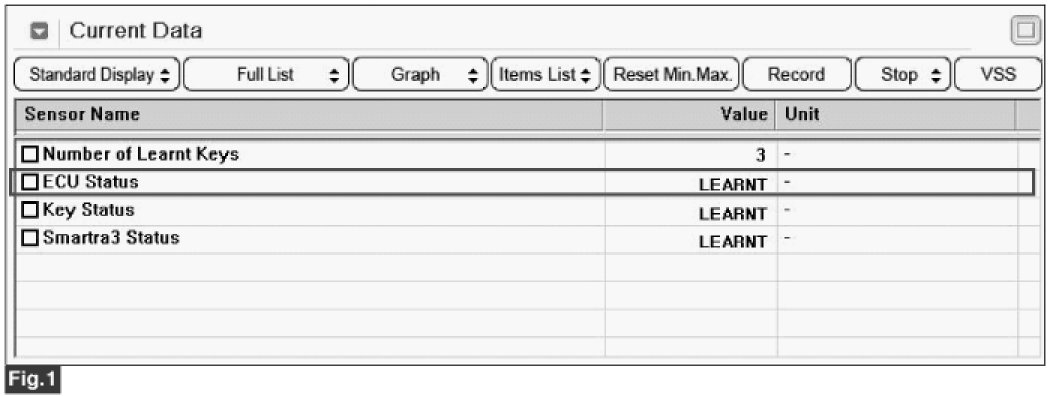

fig. 1) The current data in normal state

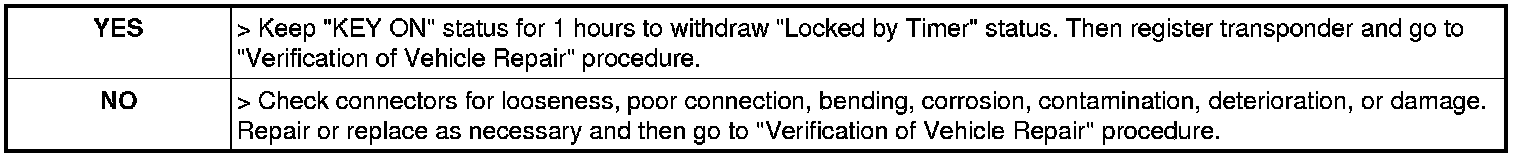

(4) Is "ECU STATUS" Parameter "Locked" ?
