Component Inspection

Component Inspection

1. Check transponder and ECU status
(1) IGN "ON" & Engine "OFF"
(2) Monitor the "KEY STATUS", "SMARTRA STATUS" and "ECU STATUS" Parameter on the Scantool.

Specification : 'LEARNT'





fig. 1) The current data in normal state

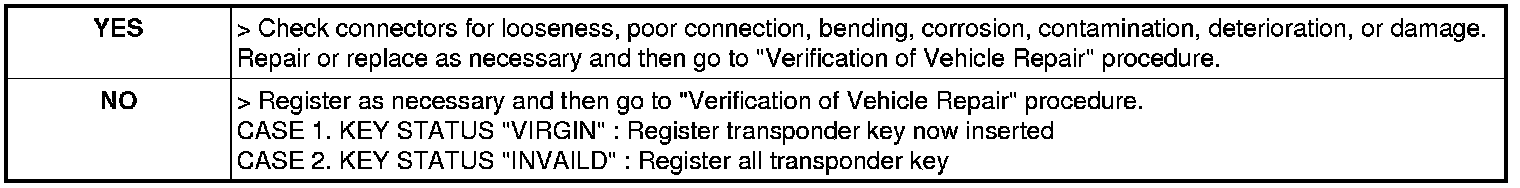

(3) Are "KEY STATUS", "SMARTRA STATUS" and "ECU STATUS" Parameter within specifications ?
